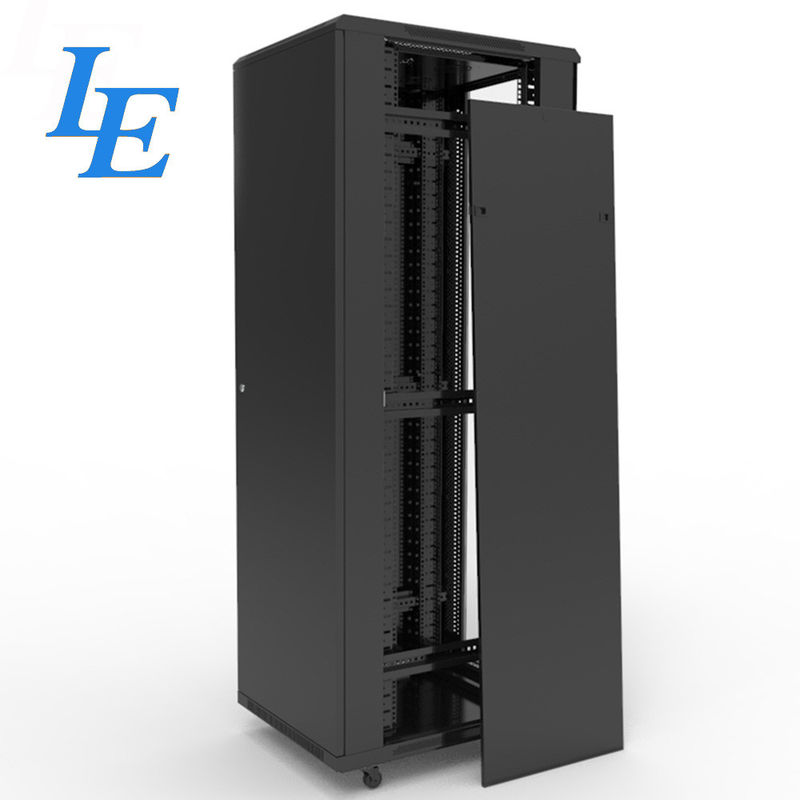

24U Server Rack Enclosure Cabinet , IP20 Server Tower Cabinet With Spring Lock

Basic Information
Place of Origin: Zhejiang, China (Mainland)
Brand Name: LE or OEM
Certification: CE,ROHS
Model Number: NB
Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiable
Packaging Details: Assembly packing or flat packing.
Supply Ability: 1000 Piece/Pieces per Week Network Cabinet
Cabinet Standard: IEC297-2 Product Name: 24U Cheap Network Server Cabinet
Type: 19" Standard Server Cabinet Color Serial: Ral9004; Ral9005; Ral7035
Height: 18U-47U Degree Of Protection: IP20
High Light:

small wall mount server rack

,

floor mount network rack

,

IEC297-2 Server Rack Enclosure

24U Cheap Network Server Cabinet

Features:

excellence quality with disassembled structure,can be flat packing and easy to transport;
Steel front and rear door each with advanced spring lock and small round lock;
Removable side panel with latches, easy to install, optional lock;
Cable entry on the top and bottom;easy to manager cable;
Adjustable feet and castors are available simultaneously;
S-shaped mounting profile, free to move forward and back;
Various optional accessories for common using;

S/N  LE-NB
Standard

 Comply with ANS/EIA RS-310-D, IEC297-2,

 DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material  SPCC quality cold rolled steel;
 Mounting profile: Thickness:2.0mm; Others:1.2mm;
 Tempered glass: Thickness:5.0mm
Loading Capacity  Static loading: 800kg (on the adjustable feet)
Degree of protection  IP20
Surface Finish  Degreasing; Pickling; Phosphating; Powder Coated
Product Specification  18U-47U
 Width: 600mm, 800mm
 Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm

24U Server Rack Enclosure Cabinet , IP20 Server Tower Cabinet With Spring Lock 0

24U Server Rack Enclosure Cabinet , IP20 Server Tower Cabinet With Spring Lock 1

Main Structure



1. Steel rear door

2. specer(for 800mm width)

3. Fan tray

4. Mounting profile

5. Blanking panel

6. Mounting angle

7. Bottom

8. Castor

9. Cable entry plate

10. Top

11. Side panel

12. Frame

13. Vertical Cable management

14. Front door

15. Fixed shelf

16. Feet





Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
