1500KG Network Ral9005 Rack Enclosure Server Cabinet

Basic Information
Place of Origin: China
Brand Name: LE or OEM
Certification: CE/ROHS
Model Number: SC
Minimum Order Quantity: 1pcs
Packaging Details: assembled/disassembled packing
Delivery Time: within 4 weeks
Payment Terms: L/C, D/A, Western Union,paypal
Supply Ability: 1000 piece / pieces per week
Color: Ral9004 ; Ral9005 ; Ral7035 Material: SPCC Quality Cold Rolled Steel
Product Name: 19 Inch 42U IP20 Floorstanding Server Rack Cabinet Height: 18 - 47U
Loading Capacity: 1500KG(on The Adjustable Feet) Degree Of Protection: IP20
High Light:

ral9005 rack enclosure server cabinet

,

1500KG rack enclosure server cabinet

Server rack enclosure network cabinet





S/N LE-SC
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 1500kg (on the adjustable feet)
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification

18U-47U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm



Style



Arc shaped vented door with MS840 lock, double open vented back door with MS840 lock, side panel(two parts)without locks(it is optional).

Four pcs mounting profile with U number.

With 25 sets screw and nuts, 4pcs JF01 castors, 4pcs adjustable feets.

With 2 pcs vertical cable tray.

Four round cable tray on top, two round cable tray in bottom.

Loading weight can be 1500kg.

Packing volumn is 80%-90% compared with NA type cabinet.

Door assembled way is using the hinges.





new (1)

NA

lena

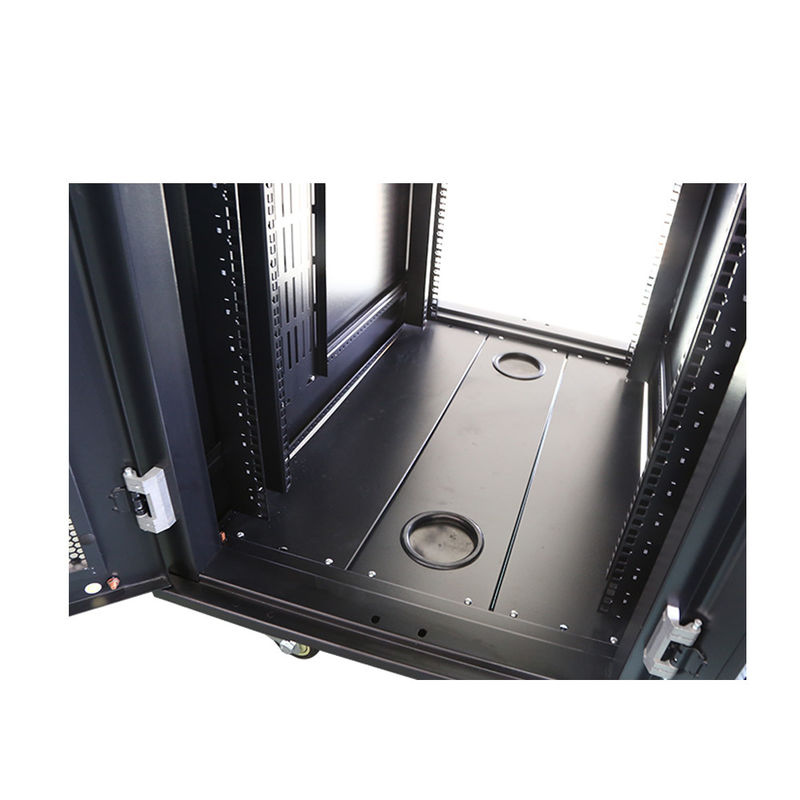

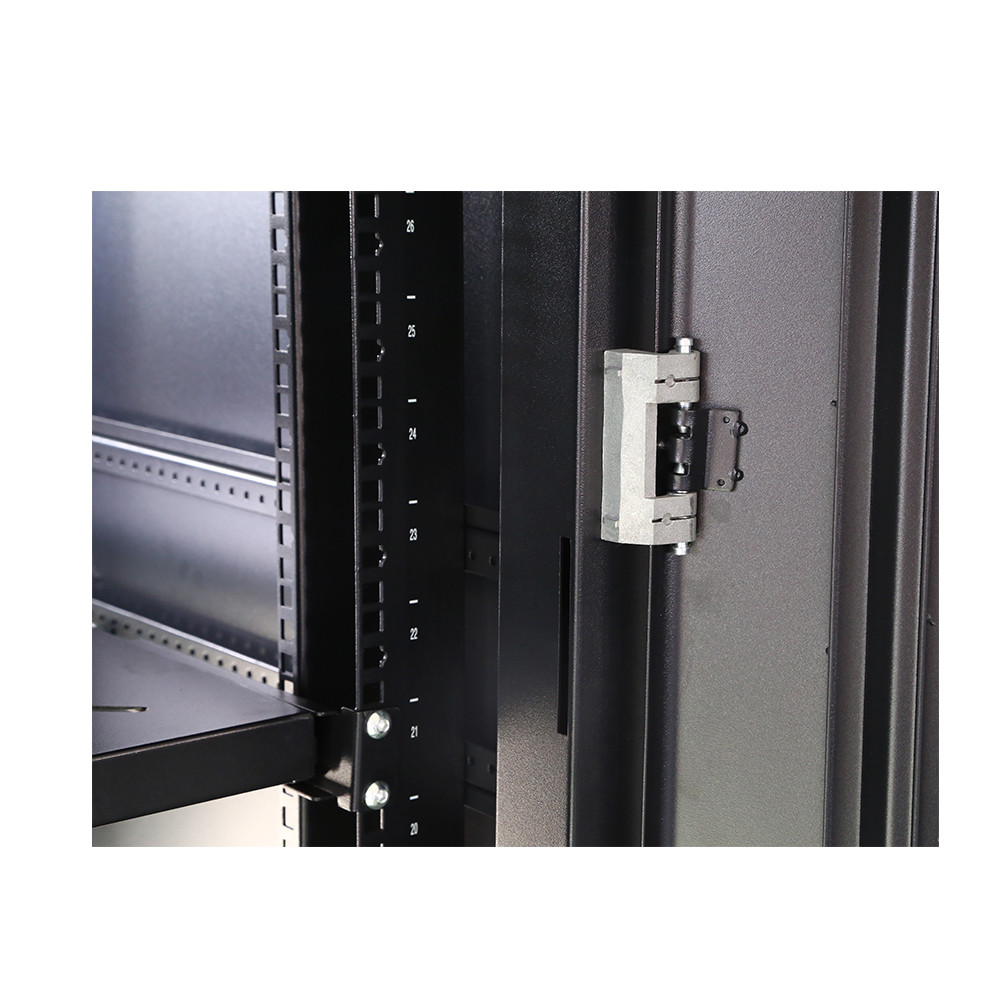

Main Structure



1. Steel rear door

2. specer(for 800mm width)

3. Fan tray

4. Mounting profile

5. Blanking panel

6. Mounting angle

7. Bottom

8. Castor

9. Cable entry plate

10. Top

11. Side panel

12. Frame

13. Vertical Cable management

14. Front door

15. Fixed shelf

16. Feet

new (2)





new (3)

Factory PIC

Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.



Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.

new (4)new_12

1. Q: Are you a factory or trading company?

A: We are a Factory, Distributor and Trading Company.

2. Q: Where is your factory located? How can I visit there?

A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

Shanghai airport, from home or abroad, are warmly welcome to visit us!

3. Q: Can you do OEM?

A: Yes, we can do OEM products. It's no problem.

4. Q: How can I get some samples?

A: We are honored to offer you samples.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling for to the every

end. Our factory has gained CE,ROHS,SGS authentication.
