| Place of Origin: | Zhejiang,China |
|---|---|
| Brand Name: | LE |
| Certification: | ISO 9001:2008,CE,ROHS,SGS,TUV,BV |
| Model Number: | LE-K044 |
| Minimum Order Quantity: | 1 |
| Price: | 0.05-0.09USD and negotiable |
| Packaging Details: | 10000pcs per carton |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 50000pcs per day |
| Material: | Plastic,Gold | Connector Type: | RJ45 |
|---|---|---|---|
| Gender: | Female | Category: | Cat6A |
| Pin: | 8 Pin | Type: | UTP |
| Application: | Telecommunication | IDC Accept: | 22-26 AWG |
| Color: | Silver | MOQ: | 1000PCS |
| High Light: | Dual IDC Network Keystone Jack,Cat6A Network Keystone Jack,Unshielded Network Keystone Jack |
||

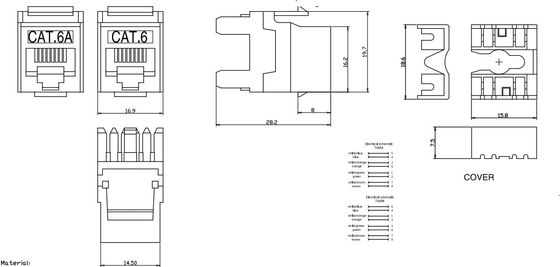

Cat6A 180 Unshielded Network Keystone Jack Dual IDC
General Description:
LE Cat6A 180 Unshielded Keystone Jack, Dual IDC
The LE Cat6A component compliant RJ45 180° unshielded keystone jacks are designed to easily snap in and out of the wall outlet, patch panel and surface mount box. The jacks are individually terminated using Insulation Displacement Connectors (IDC) with rapid punch down tool available for quick installation. The unique design provides an efficient and effective method of reducing alien crosstalk from neighbouring connectors for superior performance.
FEATURES:
LE keystone jacks meet and exceed performance levels for Cat6A
Rapid Termination tool available (Purchased separately)
Press-Fit Technology makes the product more reliable
Hardware transmission performance edition 2.2 of ISO/IEC 11801, CENELEC 50173-1, and ANSI/TIA-568-C.2 for Return loss, Insertion loss, NEXT loss, FEXT loss, TCL, TCTL, PSANEXT loss, and PSAFEXT loss up to 500MHz
More stable transmission performance is guaranteed since there is no other medium that takes effect in between PCB and contacts
Application
Ethernet
10/100TX
LAN
Premise wiring
Packing Methods:
1000pcs per carton
FAQ
1. What’s the payment?
We accept TT, L/C, Paypal , Western Union or others method.
2. What is lead time?
15-20 working days, On-Time delivery.
3. Is small samples order available?
Yes, we do not only supply MOQ order, but also small samples order for trial test or small projects.
4. If we can put my company logo on products?
We supply OEM service, it's fine to send goods with your company logo.
