| Place of Origin: | Ningbo, China |
|---|---|
| Brand Name: | LE |
| Model Number: | CW |
| Minimum Order Quantity: | 10pcs |
| Price: | US$25-US$40 |
| Packaging Details: | Dis-Assembled packing/Flat packing |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 1000pcs per week |
| Certification: | ISO9001, CE, CE&RoHs, RoHS | Material: | SPCC Quality Cold Rolled Steel |
|---|---|---|---|
| Loading Capacity: | Static Loading: 60KG | Degree Of Protection: | IP20 |
| Surface Finish: | Degreasing, Pickling,phosphating, Powder Coated | Height: | 4U-12U |
| Color: | Ral9004,Ral9005,Ral7035 | Width: | 600mm |
| Depth: | 430mm,600mm | ||
| High Light: | 12u rack,12U Wall Mount Network Rack,60KG Wall Mount Network Rack |
||

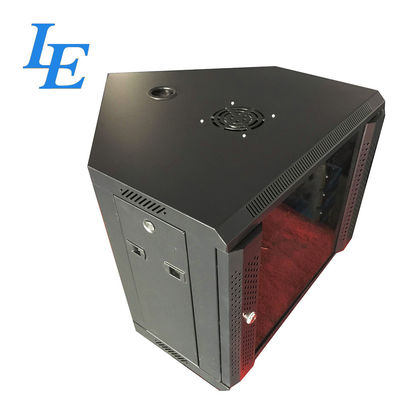

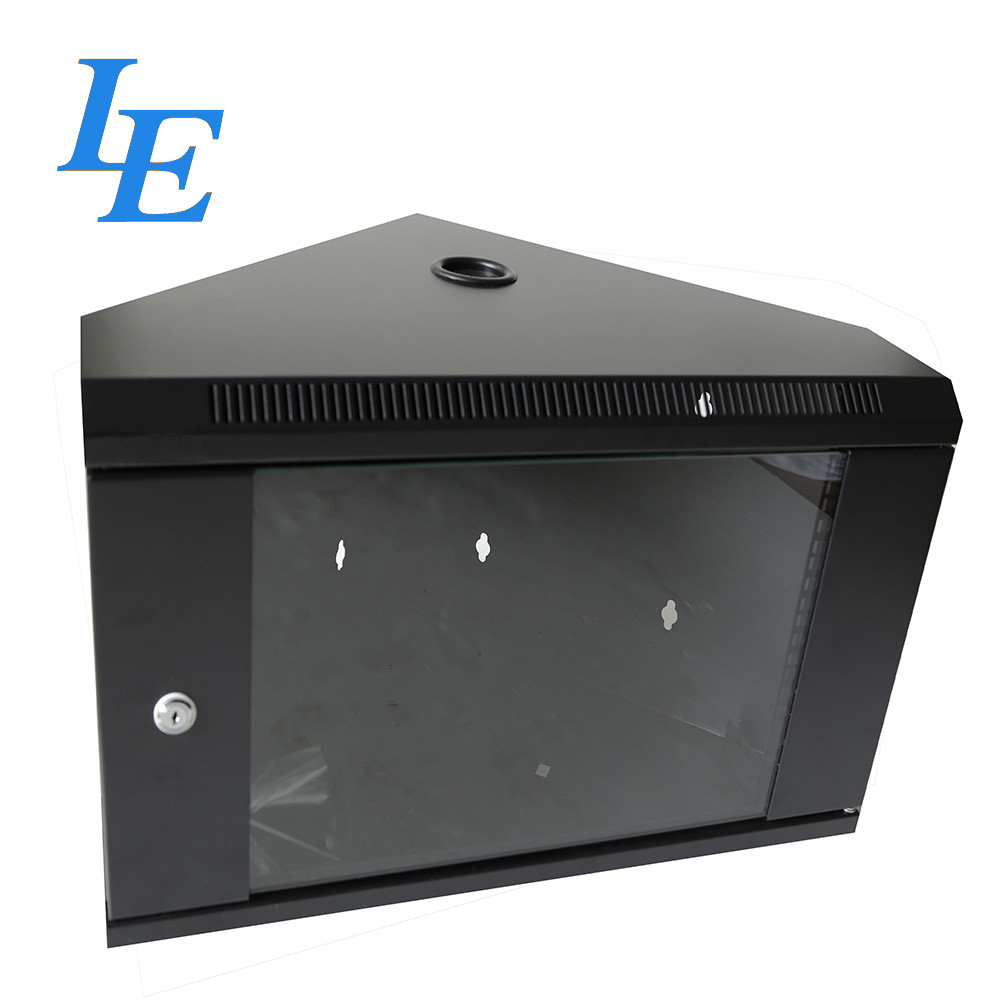

Triangular Structure 19inch 4U-12U Wall Mounted Network Cabinet
|
1.The triangle structure could reduce the space and install to corner of wall, compatible with 19'' standard equipments
2. 5mm tempered glass front door with over 180 turning degree
3. Removable side panel, easy to install and lock optional
4. Cable entry on the top and bottom
5. L-shaped mounting profile, easy to adjustable on the mounting rail
6. Fan cutout on the top, easy to install fan
7. Eight installing holes on the back panel, easy to fix on the wall
8. Various accessories for option
|
|
SS/N S/N /N S/N
|
LE-CW
|
|
Material
|
SPCC quality cold rolled steel;
Mounting profile: Thickness:1.2 mm, tempered galss: 5mm
|
|
Loading Capacity
|
Static loading: 60kg
|
|
Degree of protection
|
IP20
|
|
Surface Finish
|
Degreasing; Pickling; Phosphating; Powder Coated
|
|
Product Specification
|
4U-12U
width: 600mm
Depth: 430mm,600mm
Color: Ral9004, Ral9005, Ral7035
|
