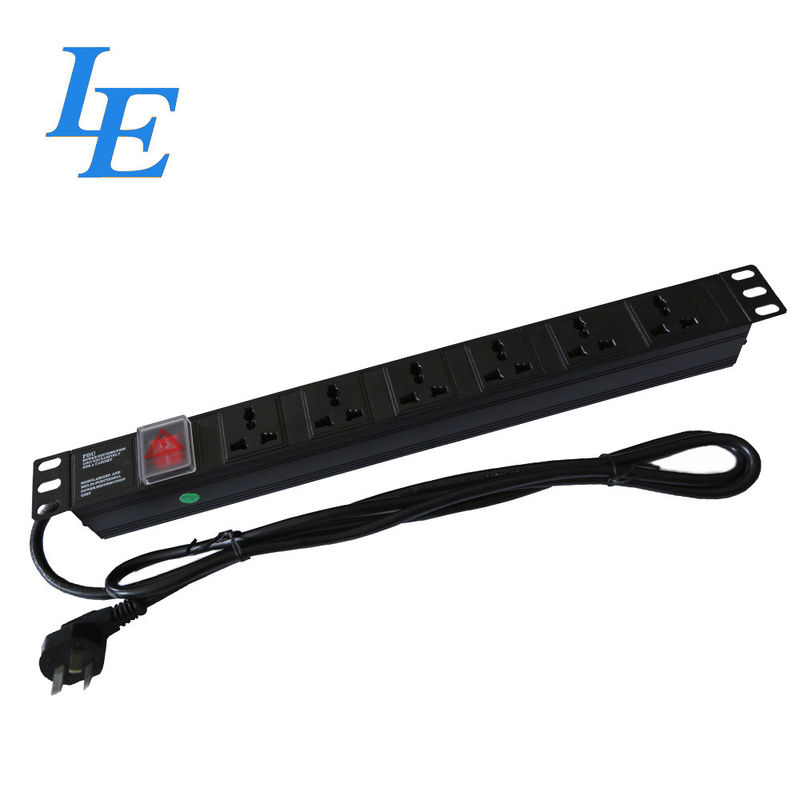

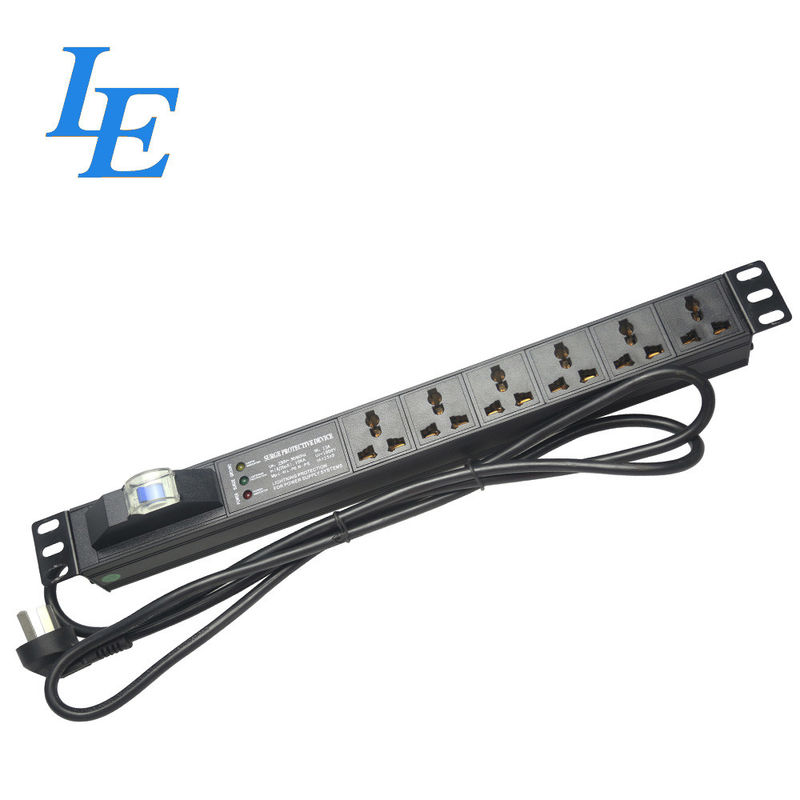

1.5U Universal Horizontal Power Distribution Unit Server Rack Pdu With Switch

Basic Information
Place of Origin: Ningbo, China
Brand Name: LE
Certification: CE/ISO/ROHS/TUV
Model Number: CHN/Universal type
Minimum Order Quantity: 100pcs
Price: US$5-US$15
Packaging Details: Assembled packing
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 5000pcs per week
Material: Aluminum Alloy (plastic Optional) Color: Black Or Aluminum Alloy
Application: Electric Power Transmission Rated Voltage: 250VAC
Rated Current: 10A Or 16A Feature: Surge Protection, Overload, Etc
Certificates: CE/ISO/ROHS/TUV Occupying Space: 1U Or 1.5U (optional)
Wire Diameter: 1㎡ Or 1.5㎡ Cable Length: 2m
High Light:

power distribution unit server rack pdu

,

horizontal server rack pdu

,

1.5U server rack pdu

19 Inch Universal Type Horizontal Power Distribution Unit With Switch





General Description:

1. 19inch Universal type PDU are horizontal and vertical installation is optional, output available are 4 to 10 way;
2. Over 19inch Universal type PDU are vertical installation, output available are more than 10 way;
3. Height 1U and 1.5U are optional ;
4. Cable length longer than 2M, more than 3*1.0mm2, other lengths optional;
5. Kinds of control function and protection function are optional.


Specification:

SS/N Input CharacteristicsS/N



Rated input voltage

Type of plug

Cable specification

Cable length

Max input current



250VAC 50/60HZ

GB1002

3*1.5mm2

2M

10A

N Output CharacteristicsS



Socket standard

Output quantity

Rating output voltage

Max output current





GB2099.3

Optional

250VAC 50/60HZ

10A



Functions



Control

Protection



Optional

Optional

Product Size



Product size

Mounting length



L*W*H=482.6*44.4*62mm(19inch)

465mm



Color & Material



Color

Shell material

Plastic flame retardant rating





Black or Aluminum alloy color

Aluminum alloy color

UL94V-0



Test Item



Hi-pot test

Grounding

IR

Certificate



PASS

PASS

PASS

CE/ ROHS

Mounting



Mounting method

Occupying space



Horizontal or vertical installation

1U or 1.5U (optional)




























































































Application:

1.5U Universal Horizontal Power Distribution Unit Server Rack Pdu With Switch 0
