| Place of Origin: | China |
|---|---|
| Brand Name: | LE or OEM |
| Certification: | CE/ROHS |
| Model Number: | WD1 |
| Minimum Order Quantity: | 5pcs |
| Price: | USD 36-65 |
| Packaging Details: | assembled/disassembled packing |
| Delivery Time: | within 4 weeks |
| Payment Terms: | L/C, D/A, Western Union,paypal |
| Supply Ability: | 1000 piece / pieces per week |

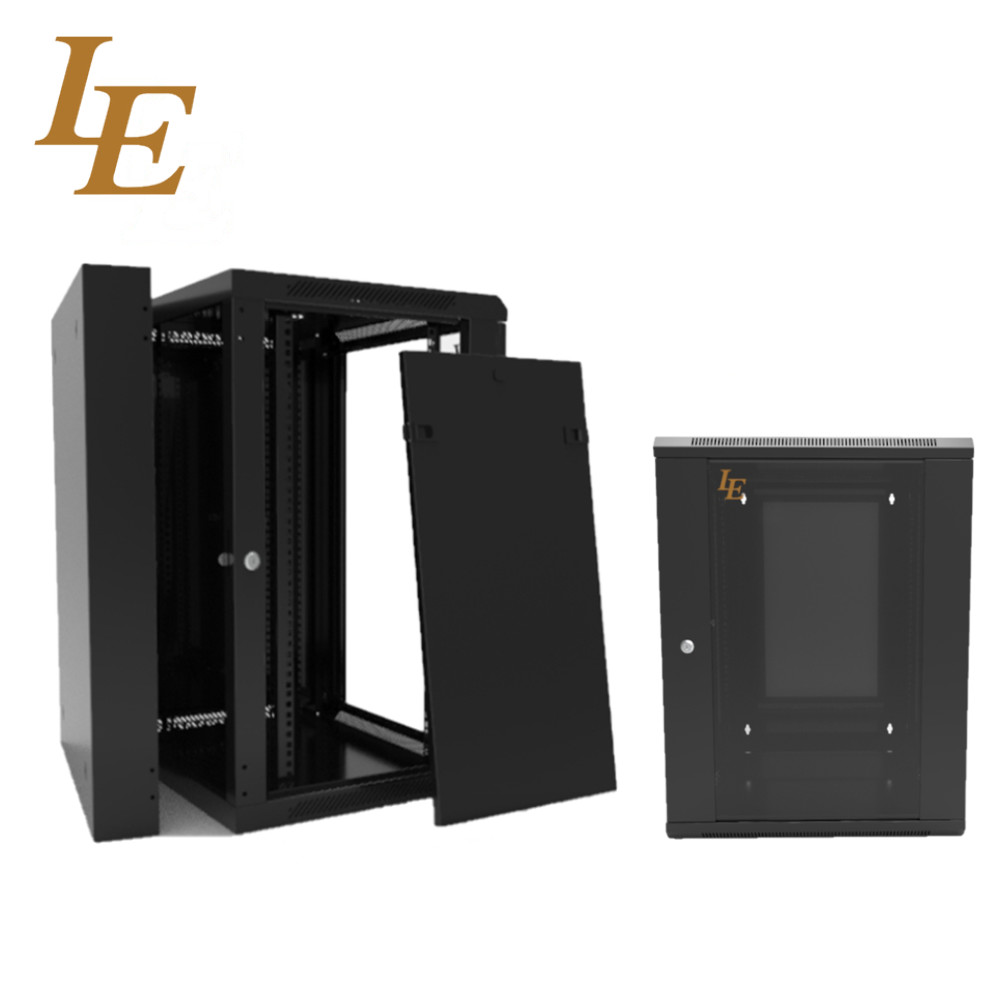

| Product Name: | 19Inch With Backbox 6u 9u Server Wall Mount Cabinet Network Cabinet | Type: | Wall Mount Network Cabinet |
|---|---|---|---|
| Cabinet Standard: | CE ROHS | Material: | SPCC Quality Cold Rolled Steel |
| Degree Of Protection: | IP20 | Height: | 4U - 27U |
| Color: | Ral9004 ; Ral9005 ; Ral7035 | Loading Capacity: | 60KG |
| Depth: | 450/600mm | Matrtial Thickness: | Mounting Profile: 1.5mm, Others: 1.2mm |
| High Light: | Network Cabinet With Backbox,6u Wall Mount Server Rack Cabinet,Server Rack Cabinet 600mm |
||
| Material | SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-18U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
General description
1.Welded frame,double section,compatible with 19" standard equipments
2.Second section with four mounting holes ,easy to fix on the wall
3.5mm tempered glass front door with over 180 turning degree
4.L-shaped mounting profile,easy to adjustable on the mounting rail
5.Removable side panel,easy to install and lock optional,second section
can open ,easy to install equipments
6.Cable entry on the top and bottom,the same as second section
7.Fan cutout on the top,easy to install fan
8.Various accessories for option
Ningbo Latitude International Trade Co., Ltd. is a manufacturer specializing in the
production of server cabinets, network cabinets, outdoor cabinets, wall cabinets and
other communication equipment.
Over the years, we have been committed to the research and development,
design and manufacture of indoor and outdoor cabinet products.
Our Advantages
1.Germany WAGNER laser cutting machine and car painting equipment, higher efficiency.
2. Professional container loading team, make full use of space, avoid shaking and
save your transportation cost.
3. There are 5 layers of imported Meika corrugated cardboard outside the carton,
which are glued to prevent scratches and protected more carefully.
4. The on-time delivery rate is over 95%.
