| Place of Origin: | Ningbo, China |
|---|---|
| Brand Name: | LE |
| Certification: | CE/ISO/ROHS/TUV |
| Model Number: | 740 |
| Minimum Order Quantity: | 1pcs |
| Price: | US$1000-US$1100 |
| Packaging Details: | Dis-Assembled packing/Flat packing |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 1000pcs per week |
| Fiber Cleaver Length: | 8-22mm | Protection Sleeve Length: | 20mm,40mm,60mm |
|---|---|---|---|
| Language: | Chinese, English,French,Korean,Russia,spanish | Splice Memory: | 20000 |
| Electrode Span: | At Least 5000times | Dimension: | 142mm*122mm,138mm |
| Operating Temperature: | -25~50 | Storage Temperature: | -40~80 |
| High Light: | 8mm fiber fusion splicer,22mm fiber fusion splicer |
||

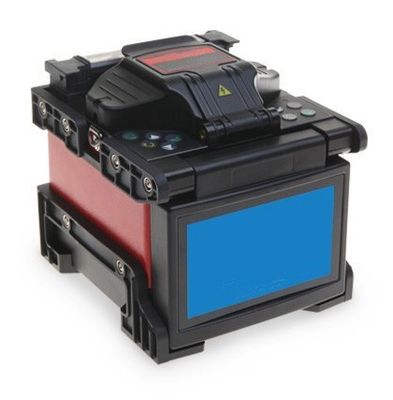

Multi-Language English French Russian 8-22mm Optical Fiber Fusion Splicer
|
S/N Fiber cleaver length
|
8-22mm
|
|
Application fibers
|
SM, MM, DS, NZ-DS(G655),EDF,Bending loss insensitive fiber (G657), pigtail,drop cable and connector
|
|
Splice loss
|
0.01db(MM), 0.02db(SM),0.05db(DS/NZDS/G.655/G.657)
|
| Return loss |
>60db
|
|
tension test |
2.0N
|
|
Protection sleeve length
|
20mm, 40mm,60mm
|
| Splicing program | 5 groups of preset programs, 75 group of manual setting |
|
Language
|
Chinese, English , Spanish, French, Russia, Korean |
|
Splice memory
|
20000 |
|
Electrode span
|
At least 500 times |
|
Opreating temperature
|
-25~50 |
|
storage temperature
|
-40~80 |
|
Dimesion
|
142mm*122mm*138mm |
|
Weight
|
1.95kg(include battery) |
