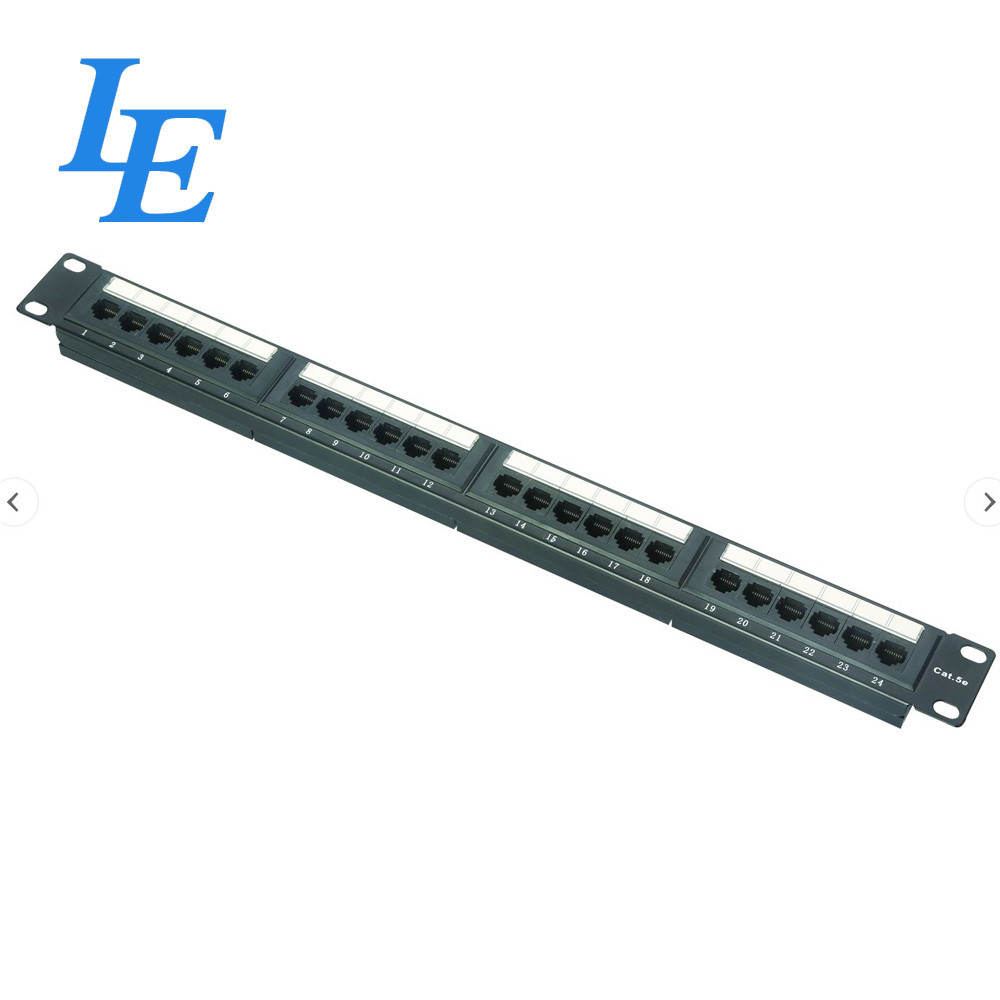

UTP CAT6 Network Patch Panel

Basic Information
Place of Origin: Zhejiang,China
Brand Name: LE
Certification: ISO 9001:2008,CE,ROHS,SGS,TUV,BV
Model Number: LE-P2524
Minimum Order Quantity: 1
Price: 5-20USD
Packaging Details: Flat packing:plastic bag+protected corner+carton
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 5000pcs per day
Material: CRS Color: Black
Category: Cat6 Port: 24ports
Height: 1U Height Insertion: 1000 Matching Cycles
Application: Telecommunication IDC Accept: 22-26 AWG
High Light:

UTP Network Patch Panel


Cat6 Network Patch Panel


CRS Network Patch Panel

19'' 1U 24 Ports UTP Network Patch Panel


General Description:

This patch panel enables quick, easy cable patching. Just plug Cat6 cables into its 24 front RJ45 ports, and use a IDC or Krone punch-down tool (do not use a 4/5 pair 110 punch-down tool) to terminate color-coded connections in the rear. Both the front and rear connectors are clearly numbered, and the front ports have blank labels to help you identify individual cable runs. The N252-P24 supports EIA/TIA 568A and 568B wiring standards and is compatible with all network applications.


Specifically Designed for Use in Power over Ethernet Plus (PoE ) Applications


This Power over Ethernet patch panel maximizes performance with PoE applications. It prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities. The N252-P24 is designed to handle the frequent mating and unmuting of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE devices under electrical load.


Mounts in 1U of Space in Your 19 in. Enclosure or Open Frame Rack.


The high-density patch panel supports mounting in 1U of space in EIA-standard 19-inch racks. Included cable ties and a removable cable management bracket help organize your connections, cut down on cord clutter and maintain stable performance.


IDC Sliver plated in the surface of the contact conductor
Insulation Resistance 1000 Mohms Minimum
Copper Conductor 0.4-0.7mm(22-26AWG Solid Wire)
Degree of Dielectric Intensity AC 1000 Vrms 50Hz or 60 Hz in 60s
Stoage Temperature -40-70 ℃
Operating Temperature -10-60℃
Relative Humidty 95%, noncondition
Design to Mount Any standard 19'' rack or cabinet( and 10'' type)
Space Saving High-density 1U(24/48/25/50 ports)


UTP CAT6 Network Patch Panel 0UTP CAT6 Network Patch Panel 1

Rugged & Durable Construction
1) 180-degree patch panel constructed with SPCC 1.5mm steel.

2) Gold-plated RJ45 8P/8C contacts with numbered ports.

3) Label spaces for hand-written or machine-printed labels.
Cat 6 Performance Features
4) T568A and T568B labels.

5) Dual IDC terminals for 110 or Krone impact tools.

6) Printed circuit board reduces NEXT to improve the signal transmission.


Packing Methods:

1pc per box

20boxes per carton

UTP CAT6 Network Patch Panel 2UTP CAT6 Network Patch Panel 3UTP CAT6 Network Patch Panel 4
