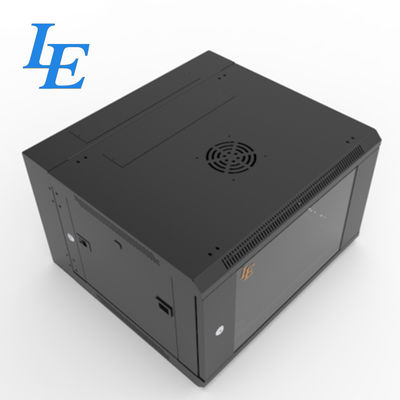

Waterproof Small Wall Mount Server Rack With Assistant Profile Unassembled Structure

Basic Information
Place of Origin: Zhejiang, China (Mainland)
Brand Name: LE or OEM
Certification: CE,ROHS
Model Number: WS2
Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: Assembly packing or flat packing.
Supply Ability: 1000 Piece/Pieces per Week Wall Mounted Cabinet
Material: SPCC Cold Rolled Steel Size: Customized
Type: Wall Mount Network Cabinet Color Serial: Ral9004; Ral9005; Ral7035
Matrtial Thickness: Mounting Profile: 1.5mm, Others: 1.2mm Degree Of Protection: IP20
High Light:

small wall mount server rack

,

floor mount network rack

,

Customized Wall Mount Server Rack



IP20 Waterproof 19 Inch Disassembled Wall Mounted Cabinet

Features:

Steel frame with assistant profile unassembled structure;
Single section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;Cable entry on the top and bottom
L-shaped mounting profile,easy to adjustable on the mounting rail
Fan cutout on the top,easy to install fan;
Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option;
Flat packing,save the container space,easy to transport;



S/N

 LE-WS2

Standard

 Comply with ANS/EIA RS-310-D, IEC297-2,

 DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material  SPCC quality cold rolled steel: Thickness:1.2mm;
 Tempered glass: Thickness:5.0mm
Loading Capacity  Static loading: 60kg
Degree of protection  IP20
Surface Finish  Degreasing; Pickling; Phosphating; Powder Coated
Product Specification  4U-18U
 Width: 600mm
 Depth: 450mm, 600mm

Waterproof Small Wall Mount Server Rack With Assistant Profile Unassembled Structure 0

Waterproof Small Wall Mount Server Rack With Assistant Profile Unassembled Structure 1

Main Structure



1. Installing Backboard

2. Mounting profile (L-shaped)

3. Cable entry plate

4. Top

5. Side panel

6. Tempered glass front door

7. Tempered glass front door with

    vented border

8. Tempered glass front door with

    meshed border



Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
