Material: | SPCC Cold Rolled Steel | Size: | Customized |
---|---|---|---|
Type: | 19" Standard Server Cabinet | Color Serial: | Ral9004; Ral9005; Ral7035 |
Height: | 18U-47U | Degree Of Protection: | IP20 |
Highlight: | small wall mount server rack,floor mount network rack,SPCC 19" Server Rack Cabinet |

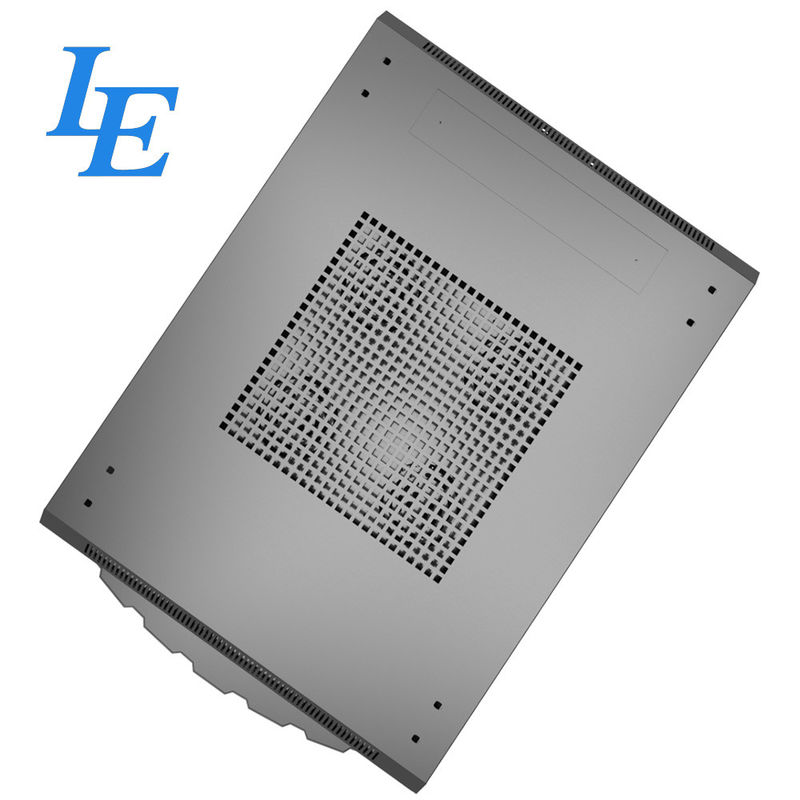

Standard 19 Inch 18U-47U Server Network Cabinet
.Features:
Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree;
vented rear door door with hexagonal holes;
Removable side panels with latch,easy to install, optional lock;
Adjustable cable entry on the top and bottom;
Welded steel frame for front and back part, flat packing is available,easy to transfer;
Optional plinth to fix cabinet on floor;under base cable entry;
Unassembled packing,about 2/5 of original volume,save container space;
S/N | LE-NC |
Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
Material | SPCC quality cold rolled steel; Mounting profile: Thickness:2.0mm; Others:1.2mm; Tempered glass: Thickness:5.0mm |
Loading Capacity | Static loading: 800kg (on the adjustable feet) |
Degree of protection | IP20 |
Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
Product Specification | 18U-47U Width: 600mm, 800mm Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm |
Main structure (800mm width) | |||
1. Top cover | 2. Fan unit | 3. Mounting profile | 4. Spacer |
5. Mounting angle | 6. Rear door with hexagonal holes | 7. High-density vented rear door | 8. Steel rear door without hole |
9. Bottom panel | 10. Heavy duty castor | 11. Frame | 12. Side panel |
13. Cable management slot | 14. Front door | 15. Front door | 16. Front door |
17. Front door | 18. Front door |
Main structure (600mm width) | |||
1. Top cover | 2. Fan unit | 3. Mounting profile | 4. Mounting angle |
5. Door with hexagonal holes | 6. High-density vented door | 7. Steel rear door without hole | 8. Bottom panel |
9. Heavy duty castor | 10. Frame | 11. Side panel | 12. Front door |
13. Front door | 14. Front door | 15. Front door | 16. Front door |
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
