24 Port Network Patch Panel With Cable Managament UTP Type For Telecommunication

Basic Information
Place of Origin: Zhejiang, China (Mainland)
Brand Name: LE
Certification: CE& ISO/ROHS/REACH
Model Number: P1024
Minimum Order Quantity: 200 Piece/Pieces
Price: Negotiable
Packaging Details: 1pcs/PE bag
Supply Ability: 10000 Piece/Pieces per Week
Product Name: 1U Cat6 24 Port With Cable Managament Utp Patch Panel Type: UTP
Material: CRS Insertion Time: 1000 Matching Cycles
Application: Telecommunication IDC Accept: 22-26 AWG
High Light:

feed through patch panel


high density patch panel



 General description of 1U Cat6 24 port  with cable managament utp fiber patch panel

  1.19" 1U Cat6 24 port  with cable managament utp fiber patch panel
  2.Operation temperature:-40°C to 60°C, Relative
  humidity:85%(30°C), Air pressure:70-106Kpa
  3.Complete metalation and reed construction
  4.Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
  5. Color: black, RAL 9005
  7.Labelling fields:1-24



  1.Front Panel: 1.5mm thickmness metal
               panel(SPCC), painting on surface
  2.Metallic Frame: 1.5mm thickness
  3. Housing material: ABS or PC, UL94-V0 or UL94-V2
  4. Meet or exceed the current T568A and T568B standard
  5. Termination: Dual IDC, 110 IDC, Krone IDC
  6. Panel frame: black or Ivory electrostatic powder-coated steel
  7. IDC contact material: phosphor brone with tin plating over nickel
  8. contact material: phosphor brone with gold plating over nickel
  9. Punching duration:≥250 times
  10. Inserting duration:≥750 times
  11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
  12. Insulation Resistance: 500M-ohm
  13.High reliability and superior performance


Horizontal distribution or equipment termination on long-distance communication;
Interactive termination on merger point;
Multi-user communication jack in working area.

Technique Characteristics:
Entire high-carbon steel outer frame, with plastic powder cladding.
RJ45 jack frame material: PBT, 8 pin of the RJ45 jack: phosphor bronze with golden plated 6 inch,15inch,30inch,50 inch at potion; Shielding shell of the
RJ45 jack : Brass housing with nickel-plated; IDC clip: Tinned phosphor bronze
Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
IDC: 6-3& 5-4 LSA-plus type

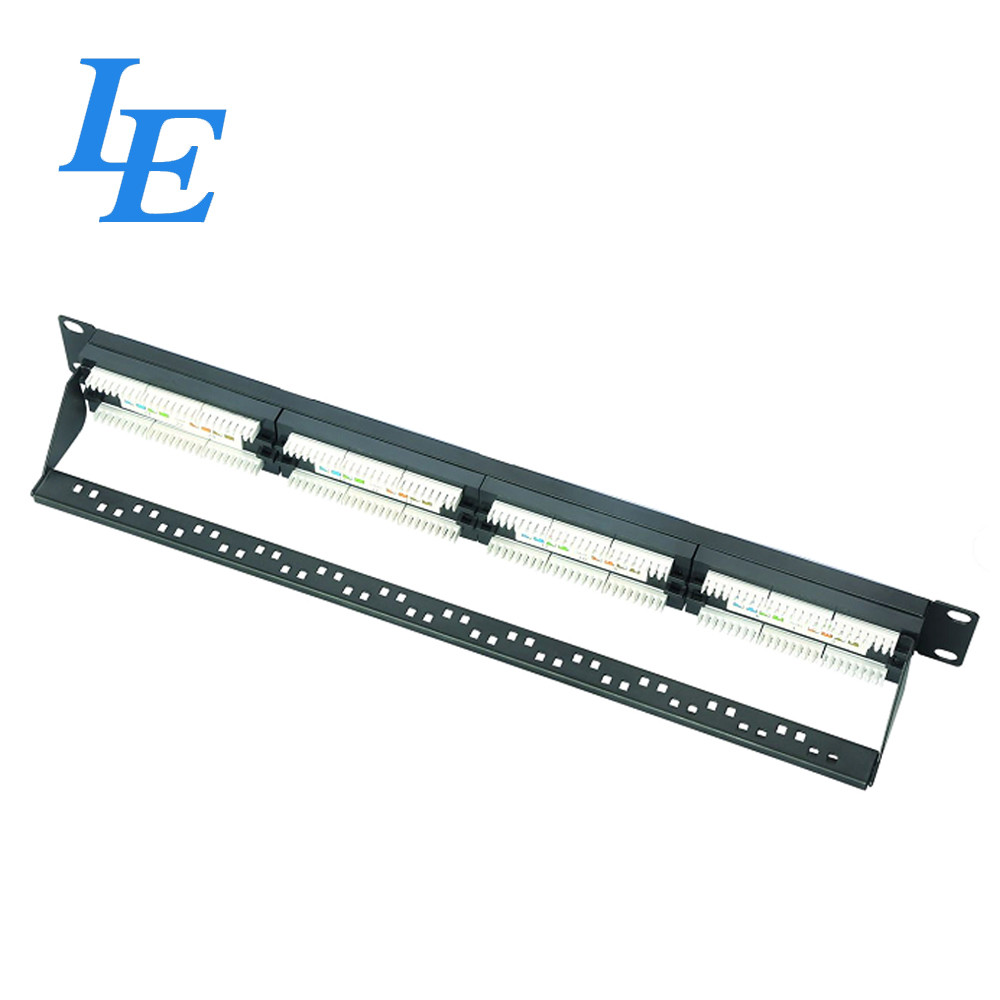

24 Port Network Patch Panel With Cable Managament UTP Type For Telecommunication 0





Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
