Product Name: | 4 Cores FTTH Fiber Optic Distribution Box With Sc/APC Adaptor | No. Of Cores: | 2, 4, 8, 16, 32, 48 |
---|---|---|---|
Type: | Wall Mounted | Material: | PC ABS |
Adapter: | FC/SC/LC | Working Temperature: | -40℃~65℃ |
Application: | Telecommunication | IP Grade: | IP65 |
Color: | Can Be Customized | Port: | NINGBO |
Highlight: | fiber optic connection box,network termination box |

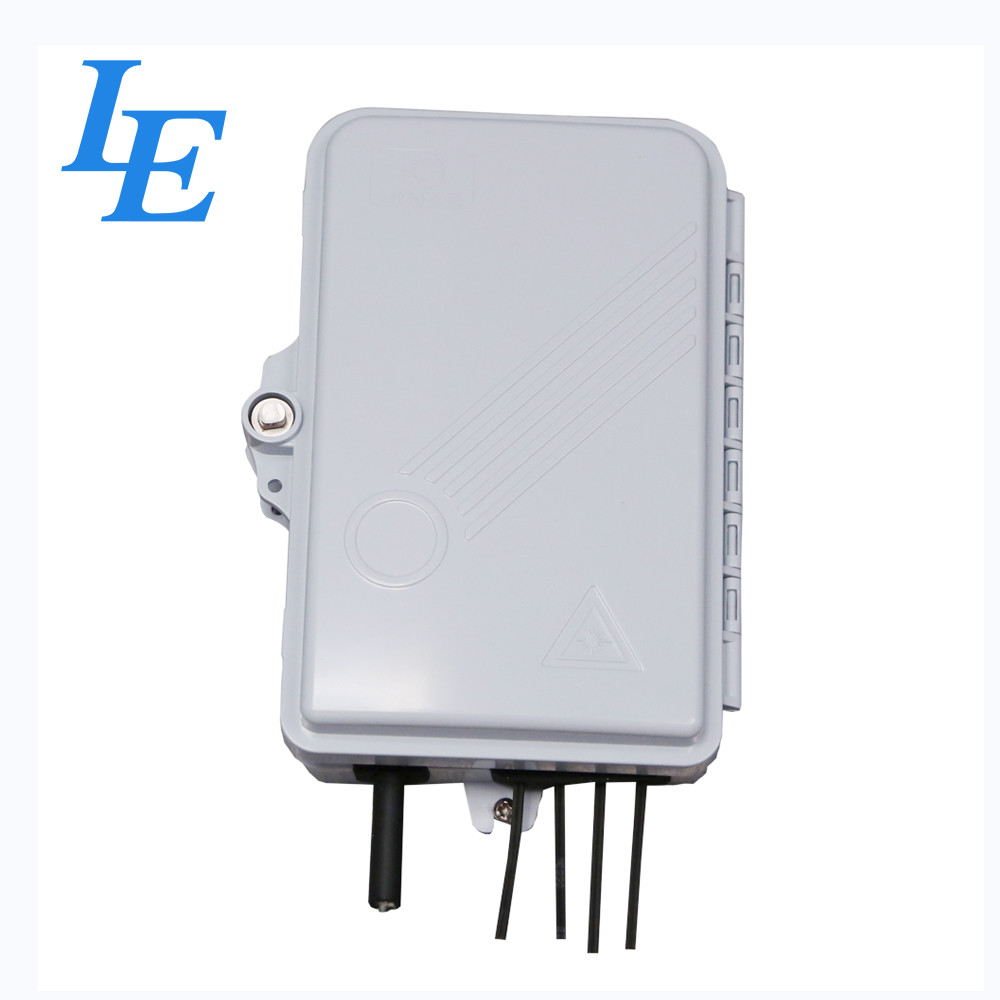

4 Cores FTTH Fiber Optic Distribution Box with Sc/APC Adaptor
Features:
Insertion loss:≤0.30dB ,Return loss:≥50dB.
Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
Job stress: 70 kpa to 108 kpa;
Using the temperature:- 40 ~ + 60 ℃
Relative humidity: ≤95% (+ 40 ℃).
Protection grade: IP65.
Insulation resistance: grounding device and the insulation resistance between the body machining parts not less than 2 x104m Ω/500V(DC);
Withstand voltage: grounding device and the case between the metalworking withstand voltage of not less than 3000V(DC)/1min.
The door is open Angle: 180 ° 3-7 or higher.
Box must have good corrosion resistance and damage resistance performance.
Appearance and size:
Industry Standard User Interface, be made of high impact plastic.
Anti-UV, Ultra violet resistant and rainfall resistant.
Can accommodate 1*8 or 1*4 ,1*16 PLC splitter
Up to 24 FTTH drops.
Wall and pole mountable.
2 inlet ports, 8 outlet ports
Material : PC +ABS
Size:200mm(W)x215mm(H)x54mm(D)
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
