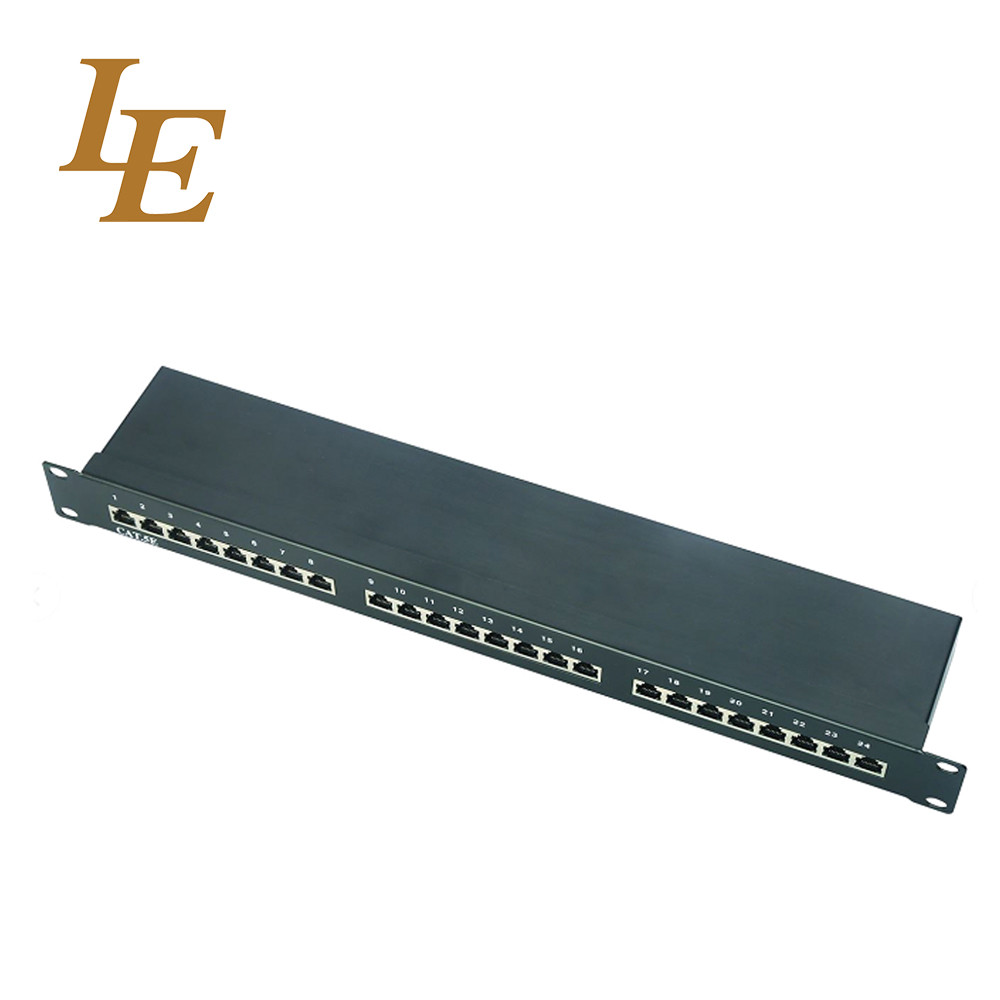

Fiber Networking CAt5E 24 Way UTP FTP Patch Panel SPCC Plastic Rack 19 Inch Superior Performance

Basic Information
Place of Origin: China
Brand Name: LE
Model Number: LE-P5324S-C5e
Minimum Order Quantity: 100pcs/each size
Packaging Details: 5 layers carton
Delivery Time: 25-30 workdays
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: everyday loaded several containers
Certification: CE/ROHS/ISO Material: SPCC Cold Rolled Steel
Size: 19 Inch Color: RAL7035/RAL9004
MOQ: 100 Pcs Package: 5 Layers Carton
Lead Time: 25 Workdays
High Light:

ethernet cable patch panel


high density patch panel


Fiber Networking CAt5E 24 Way UTP FTP Patch Panel SPCC Plastic Rack 19 Inch


Product detail


 General description of 24 way LE UTP FTP Patch Panel

  1.19" 1U FTP 24 Port Patch Panel With Cable Management
  2.Operation temperature:-40°C to 60°C, Relative
  humidity:85%(30°C), Air pressure:70-106Kpa
  3.Complete metalation and reed construction
  4.Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
  5. Color: black, RAL 9005
  7.Labelling fields:1-24



  1.Front Panel: 1.5mm thickmness metal
               panel(SPCC), painting on surface
  2.Metallic Frame: 1.5mm thickness
  3. Housing material: ABS or PC, UL94-V0 or UL94-V2
  4. Meet or exceed the current T568A and T568B standard
  5. Termination: Dual IDC, 110 IDC, Krone IDC
  6. Panel frame: black or Ivory electrostatic powder-coated steel
  7. IDC contact material: phosphor brone with tin plating over nickel
  8. contact material: phosphor brone with gold plating over nickel
  9. Punching duration:≥250 times
  10. Inserting duration:≥750 times
  11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
  12. Insulation Resistance: 500M-ohm
  13.High reliability and superior performance











Company Information




Our Advantages:
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
