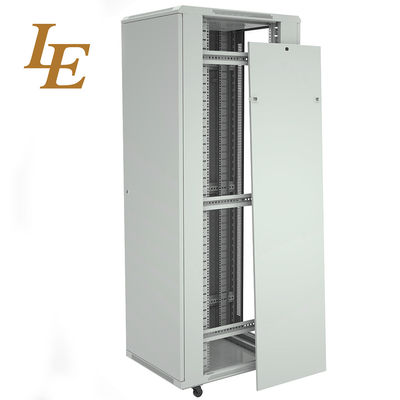

Floor Standing Server Rack Cabinet 19 Inch 42U IP20 CE / ROHS Certification

Basic Information
Place of Origin: China
Brand Name: LE or OEM
Certification: CE/ROHS
Model Number: NA
Minimum Order Quantity: 10
Price: USD 150 - 270 dollar
Packaging Details: assembled/disassembled packing
Delivery Time: within 4 weeks
Payment Terms: L/C, D/A, Western Union,paypal
Supply Ability: 1000 piece / pieces per week
Color: Ral9004 ; Ral9005 ; Ral7035 Material: SPCC Quality Cold Rolled Steel
Product Name: 19 Inch 42U IP20 Floorstanding Server Rack Cabinet Height: 18 - 47U
Loading Capacity: 800KG(on The Adjustable Feet) Degree Of Protection: IP20
High Light:

small wall mount server rack

,

floor mount network rack

,

rohs certification floor server rack

Manufacturer 19 inch 42U IP20 floorstanding server rack cabinet



S/N LE-NA
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 800kg (on the adjustable feet)
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 18U-47U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm
Style

Classic model, disassembled structure, can be flat packing and easy to transport;

Tempered glass front door with advanced spring lock, Steel rear door with small round lock;

Removable side panel with latches,easy to install, optional lock;

Cable entry on the top and bottom; easy to manager cable;

Adjustable feet and castors are available simultaneously;

S-shaped mounting profile, free to move forward and back;

Various optional accessories for common using.



Floor Standing Server Rack Cabinet 19 Inch 42U IP20 CE / ROHS Certification 0



Floor Standing Server Rack Cabinet 19 Inch 42U IP20 CE / ROHS Certification 1

Floor Standing Server Rack Cabinet 19 Inch 42U IP20 CE / ROHS Certification 2



Main Structure



1. Top cover

2. Fan unit

3. Mounting profile

4. Spacer

5. Mounting angle

6. Rear door with hexagonal holes

7. High-density vented rear door

8. Steel rear door without hole

9. Bottom panel

10. Heavy duty castor

11. Frame

12. Side panel

13. Cable management slot

14. Tempered glass Front door

15. Arc vented front door

16. 05J border glass front door

17.Single vented front door

18.Steel front door

Floor Standing Server Rack Cabinet 19 Inch 42U IP20 CE / ROHS Certification 3







Factory PIC

Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.



Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.

new (4)new_12

1. Q: Are you a factory or trading company?

A: We are a Factory, Distributor and Trading Company.

2. Q: Where is your factory located? How can I visit there?

A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

Shanghai airport, from home or abroad, are warmly welcome to visit us!

3. Q: Can you do OEM?

A: Yes, we can do OEM products. It's no problem.

4. Q: How can I get some samples?

A: We are honored to offer you samples.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling for to the every

end. Our factory has gained CE,ROHS,SGS authentication.
