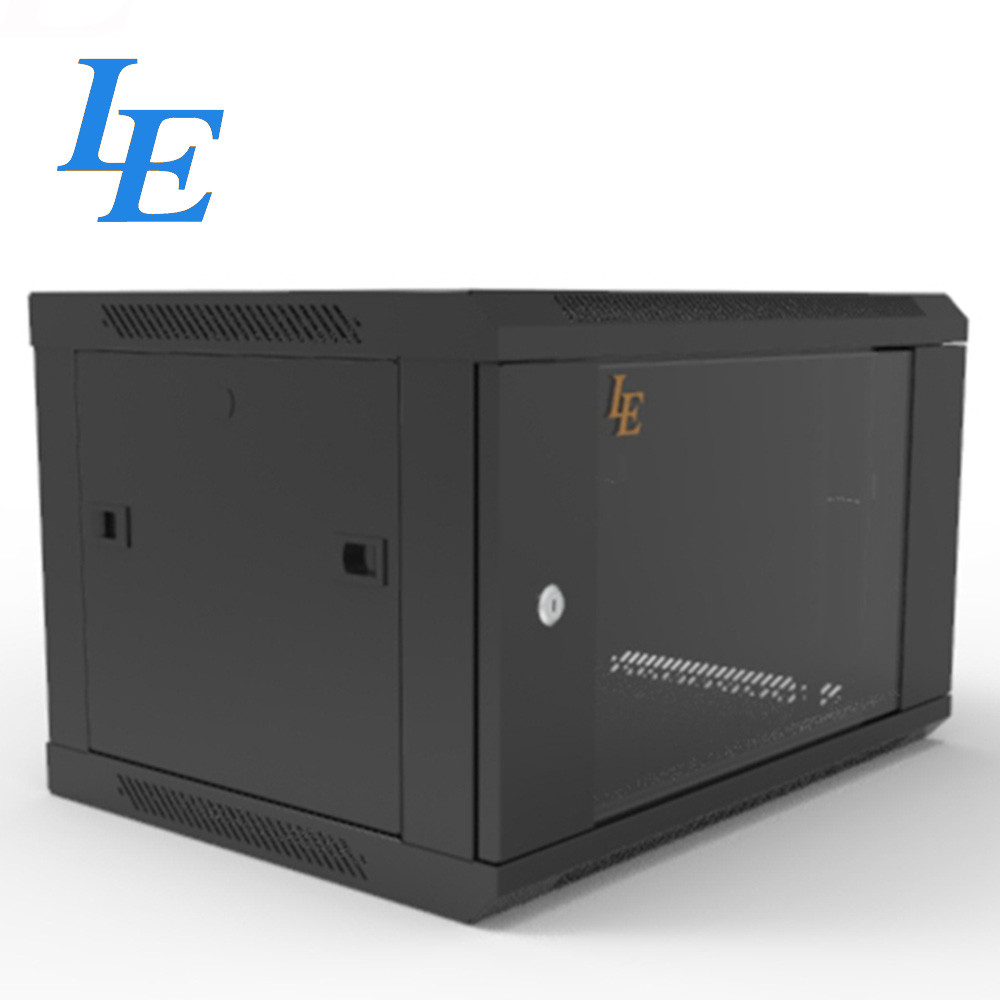

SPCC 12U Home Office Computer Server Rack Data Center Wall Mounted Rack For Network

Basic Information
Place of Origin: Zhejiang,China
Brand Name: LE
Certification: ISO 9001:2008,CE,ROHS,SGS,TUV,BV
Model Number: LE-WS3
Minimum Order Quantity: 1
Packaging Details: Flat packing:plastic bag+protected corner+carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 5000pcs per day
Materila: SPCC Quality Cold Rolled Steel Color:: Ral9004;Ral9005;Ral7035
Material Thickness: 1.2mm;tempered Glass:5.0mm Loading Capacity: 100kg
Degree Of Protection: IP20 Width: 600mm
Depth: 450mm,600mm Height: 4-22U
High Light:

small wall mount server rack


floor mount network rack


spcc 12u computer server rack

SPCC 12U Data Center Wall Mounted Rack For Network


General Description:

1. Welded frame, single section, compatible with 19" standard equipments;

2. 5mm tempered glass front door with over 180 turning degree;

3. Removable side panel, easy to install and lock optional;

4. Cable entry on the top and bottom;

5. L-shaped mounting profile, easy to adjustable on the mounting rail;

6. Fan cutout on the top, easy to install fan;

7. Installing back panel, easy to fix on the wall;

8. Various accessories for option;


Material SPCC quality cold rolled steel
Loading Capacity 100kg
Degree of Protection IP20
Surface Finish Degreasing,Pickling,Phosphating,Powder Coated
Production Specification 4-22U
Width 600mm
Depth 450mm,600mm
Color Ral9004;Ral9005;Ral7035


Order Codes Capacity W*D*H(mm)
LE-W3S-6404 4 600*450*279
LE-W3S-6604 4 600*600*279
LE-W3S-6412 12 600*450*634
LE-W3S-6612 12 600*600*634
LE-W3S-6422 22 600*450*1081
LE-W3S-6622 22 600*600*1081
