Place of Origin: | Zhejiang, China (Mainland) |
---|---|
Brand Name: | LE or OEM |
Certification: | CE, IS9001,RoHS |
Model Number: | NF-6837 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | cartons |
Delivery Time: | 25-30 days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 1000Piece/Pieces per Week Free Standing Cabinet |
Zhejiang, China (Mainland): | SPCC Quality Cold Rolled Steel | Loading Capacity: | Static Loading:1300kg |
---|---|---|---|
Color: | Ral9004; Ral7035 | Width: | 600mm |
Depth: | 800mm | Height: | 37U |
Logo: | Silk Print,can Be Customized,Aluminum Sticker | Customization: | Yes!!! |
Degree Of Protection: | IP20 | Application: | Server Room,Data Center Server Rack |
Front Door: | Flat Mesh,Tempered Glass Door | ||
Highlight: | small wall mount server rack,floor mount network rack |

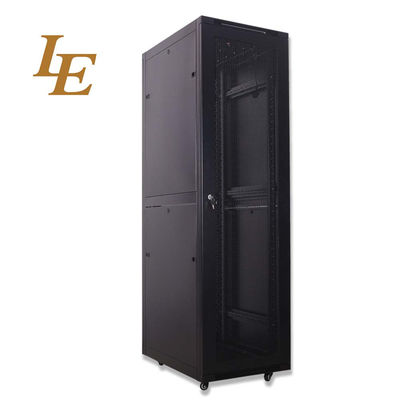

LE-NF is a new type of structural cabinet for network cabling.
Optional front and rear doors (tempered glass door, single, double ventilation door, steel door or others);
Removable and segmented side panels with lock catches for easy installation (optional lock);
Excellent ventilation design, optional cooling fan;
More cable entries on top and bottom for cable management;
4 U-shaped mounting profiles for easy adjustment on the mounting rail;
The maximum static load capacity can reach 1300 kg;
Standard:
Comply with IEC60297-3 , CE-EMC, CE-LVD , RHOS,TUV , ISO-9001 standard.
All metal are high-quality SPCC Cold Rolled Steel
Thickness: Tempered glass:5 mm;
Steel:Mounting profiles are 2.0 mm, others are 1.2 mm
IP20
Degreasing, pickling, phosphoric, powder coated, static powdered by WAGNER advanced painting equipment and system , let the cabinet with fine wrinkle soft touch paint
Product range attracts the attention with the mostly environmentally fit and selected color of RAL 7035(Light Grey),RAL9004/RAL9005(Black)
- Height: 18 U- 47 U
- Width: 600 mm/800 mm
- Depth: 600 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
Could be Customized
- 1 PC top and bottom
- 1 PC front door with lock
- 1 PC rear door with lock
- 2 Sets removable side panel with latches
- 4 PCS mounting profile
- 1 set fan tray with 4 fans
- 25 sets cage&nuts
- 4 PCS castor , 4 PCS M10 adjustable feet
Fan, cable management,shelf,blank panel, power distribution unit, etc.
Disassembled packing. 3 Cartons for 1 set cabinet. Could be Customized
CTN 1. :Front door(13),Rear door(3),Frames(11),Mounting profiles(14).
CTN 2. :Side panels(4),Connect panel(5),
CTN 3. :Top cover(1&9&10), Bottom(15&16), Fan tray(2), Mounting angle(12), Castors(7), Adjustable feet(8), shelf(6) ,and other accessories.
