| Place of Origin: | Ningbo, China |
|---|---|
| Brand Name: | LE |
| Certification: | CE/ISO/ROHS/TUV |
| Model Number: | TA01 |
| Minimum Order Quantity: | 10pcs |
| Price: | US$230-US$380 |
| Packaging Details: | Assembled packing/ Disassembled packing |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 1000pcs per week |
| Material: | SPCC Quality Cold Rolled Steel | Loading Capacity: | Static Loading: 1500KG |
|---|---|---|---|
| Degree Of Protection: | IP55 | Surface Finish: | Degreasing, Pickling,phosphating, Powder Coated |
| Height: | 1800mm,2000mm,2200mm | Width: | 600mm,800mm,1000mm,1200mm |
| Depth: | 400mm,500mm,600mm,800mm | Color: | Ral7035SN |
| High Light: | 1800mm Outdoor Network Cabinet,1500KG Outdoor Network Cabinet |
||

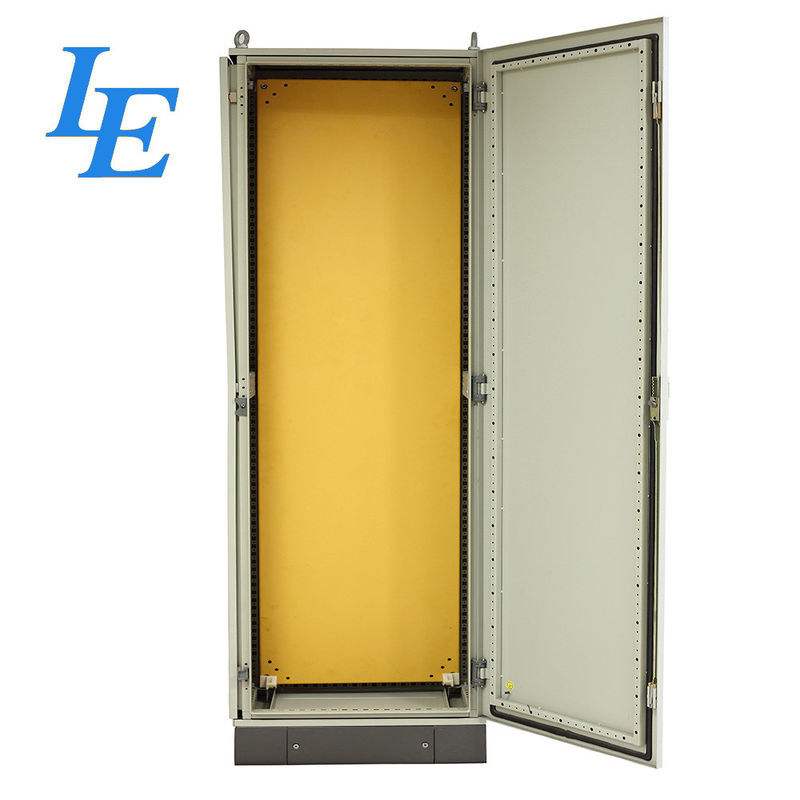

SPCC Cold Rolled Steel 42U IP55 Outdoor Telecom Network Cabinet
|
1.Stable structure, precise dimension, capacious inner mounting space;
2.Colded rolled steel welded frame with strong structure;
3. Multi-folded periphery of enclosure to keep water or dust out of cabinet;
4. All-round polyurethane gasket near the protect slot with dustproof and waterproof;
5. Front door can open to 110 degree, from left or right;
6. Adjustable mounting panel inner the enclosure;
7. Cable tray with cover on the bottom; sealed rings protection;
8. M8 earthing pole on the body, mounting panel and door;
9. Mounting bracket on the rear part of enclosure, which make the enclosure installing easily;
10. lock for front door with good seal performance;
11. Apply to mount various industrial components, controlling equipments and cable management.
|
|
SS/N S/N /N S/N
|
LE-TA01
|
| Standard |
Comply with EN60529/10.91, IEC60529 and GB4208-93, Standard
|
|
Material
|
SPCC quality cold rolled steel;
Thickness: mounting panel and front door: 2mm;
Frame and mounting angle: 1.5mm; others: 1.2mm
|
|
Loading Capacity
|
Static loading: 1500kg
|
|
Degree of protection
|
IP55
|
|
Surface Finish
|
Degreasing; Pickling; Phosphating; Powder Coated, Static powdered, Mounting panel: cooler RAL2000SN.
Body of enclosure, frame, side panel and doors: cool Ral7035SN
|
|
Product Specification
|
Capacity: 1800mm,2000mm,2200mm
Width: 600mm,800mm,1000mm,1200mm
Depth: 400mm,500mm,600mm,800mm |
