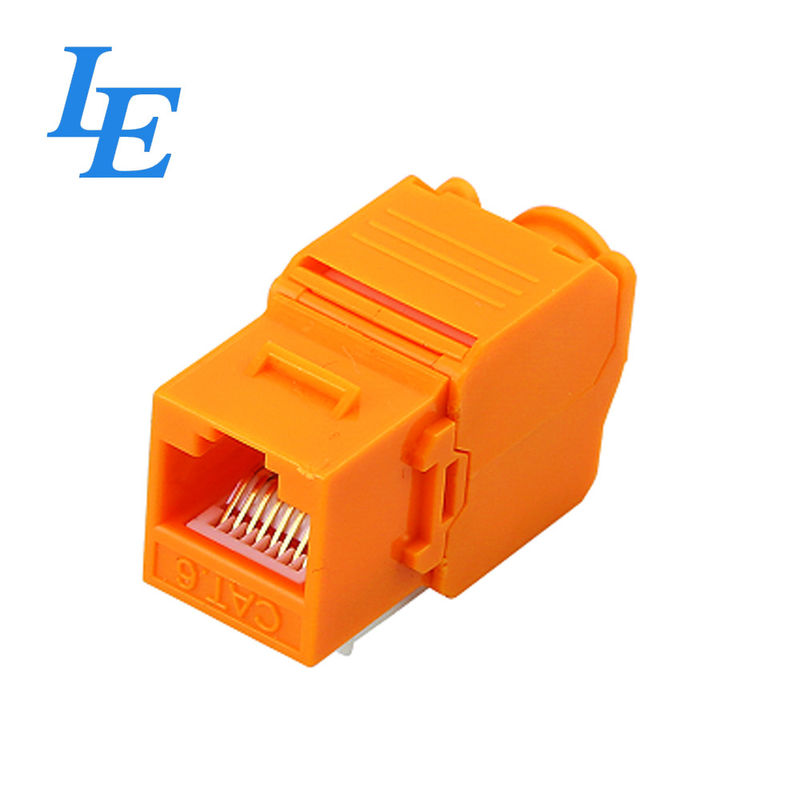

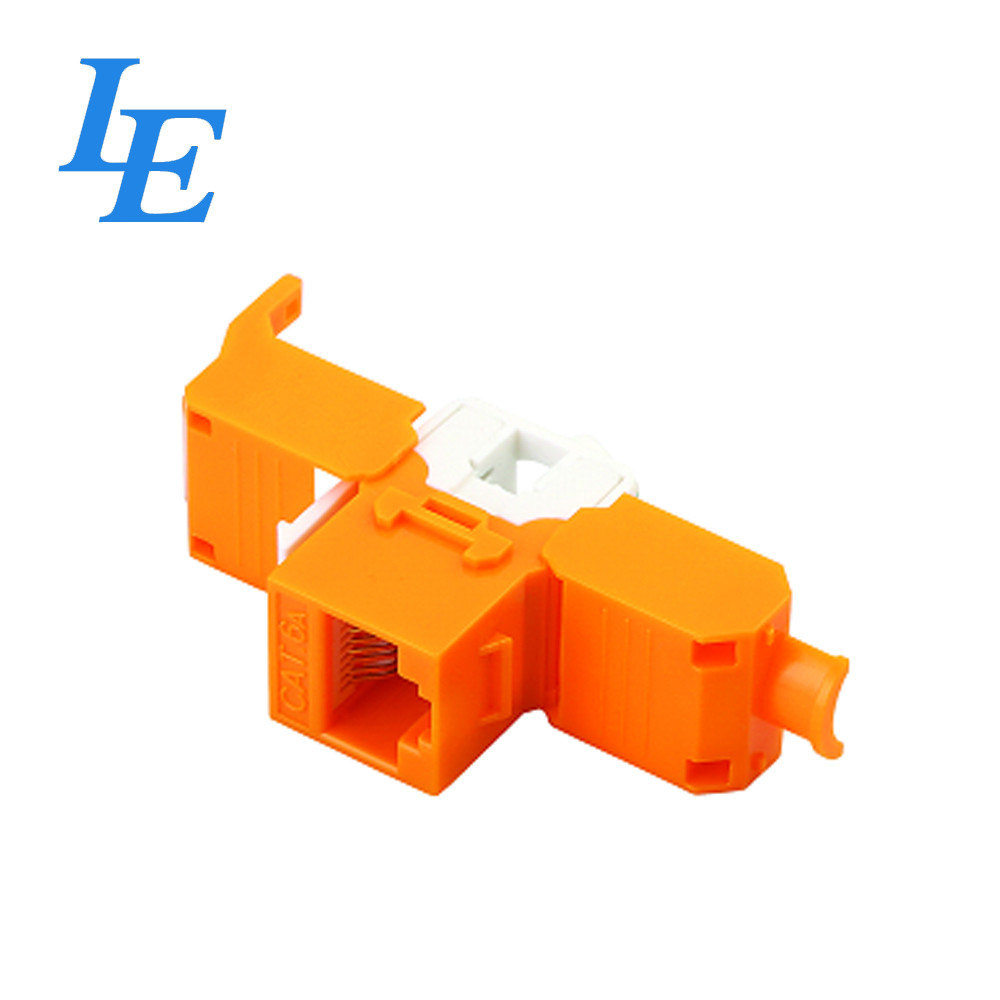

UTP 180° Toolless Cat6 Network Keystone Jack

Basic Information
Place of Origin: Zhejiang,China
Brand Name: LE
Certification: ISO 9001:2008,CE,ROHS,SGS,TUV,BV
Model Number: LE-K055
Minimum Order Quantity: 1
Price: 0.05-0.09USD and negotiable
Packaging Details: 10000pcs per carton
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs per day
Material: Plastic,Gold Connector Type: RJ45
Gender: Female Category: Cat6
Pin: 8 Pin Type: UTP
Application: Telecommunication IDC Accept: 22-26 AWG
Color: Orange/Yellow MOQ: 1000PCS
High Light:

Cat6 Network Keystone Jack

,

UTP Network Keystone Jack

,

26 AWG Network Keystone Jack

UTP 180° Toolless Cat6 Keystone Jack



General Description

The LE Cat6 UTP toolfree keystone Jack provides you a new solution. It is a high quality connector ensure system reliability and stability by automatic production line. The Toolless design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of UTP installation.



Features

Compatible both T568A and T568B wiring schemes.
Tool free type, easy installation.
Compatible for 24 port applications in 1U, also fit high density 48port panel.
Easily snap in and out of patch panel, and surface boxes or other


Application

UL Certified & RoHS Compliant.
50U" gold plating.
Electrical Features
Insulation Resistance: 500 MΩ.
Dielectric Withstanding Voltage: 1000 V AC.
DC Current Rating: 1.5 Amps.
DC Resistance: 0.1Ω.
Contact Resistance: 20mΩ.



Place of Origin

Zhejiang,China

Brand Name

OEM

Model Number

LE-K055

Type

8P8C

Application

Structure Cabling System

Color

orange/ yellow

Material

PC

MOQ

1 piece

Insertion Life

2000 mating cycles

Usage

Network Cable Testing

Goldplated

6U-50U"







Packing Methods:

1000pcs per carton
