| Place of Origin: | Zhejiang,China |
|---|---|
| Brand Name: | LE |
| Certification: | ISO 9001:2008,CE,ROHS,SGS,TUV,BV |
| Model Number: | LE-G002S |
| Minimum Order Quantity: | 1 |
| Price: | 0.03-0.06USD and negotiable |
| Packaging Details: | 10000pcs per carton |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 50000pcs per day |
| Material: | Plastic,Gold | Connector Type: | RJ45 |
|---|---|---|---|
| Gender: | Female | Category: | Cat6 |
| Pin: | 8 Pin | Type: | FTP |
| Application: | Telecommunication | IDC Accept: | 22-26 AWG |
| Color: | Silver | MOQ: | 1000PCS |
| High Light: | FTP Rj45 8p8c Cat6,Gold Plated Rj45 8p8c Cat6,FTP cat6 rj45 plugs |
||

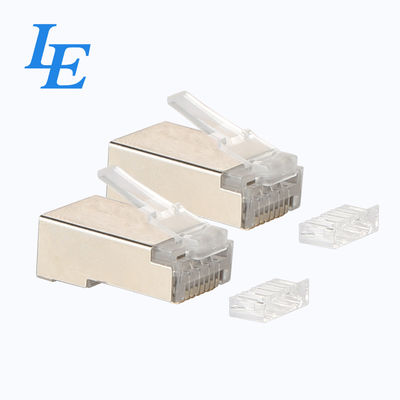

FTP Cat6 RJ45 Gold-Plated Network Plug for Solid Wire Cable
General Description:
Two-Piece Design CAT 6 RJ45 Connectors terminates unshielded or shielded twisted pair cable for making a custom-length Cat 6 Ethernet cable; Supports 24-28 AWG round or flat stranded wire with an outside diameter up to 5.4mm. Each connector with a load bar which is best for installation with passing through conductors.The connector locking clip can be bent many times without breaking.
Gold plated 8P8C terminal, which is oxidation resisting, ageing-resistant, ultra-low impedance, and has better ability of conduction, makes the contact attach to the core closer and the data flow stable.
3-Prong contacts pins can straddle both solid and stranded conductors properly.
Features
Plug Housing is made of flame retardant LG PC material, with the copper casing under plated with gold which assure that each crimping without fail. Each connector with a load bar which is best for installation with passing through conductors.
High-performance shielded housing and the thick gold-plated three-prongs gold-plated contacts ensure fast data transfer speed, reduce pair to pair alien crosstalk, and greatly improve noise immunity at all frequencies.
Compatible to both T568A and T568B wiring schemes.
Application
Apply to Switch, Wireless Device, Modem, Hub, ADSL, PC, TV, Digital Device.
Packing Methods:
10000pcs per carton
