110 288vac 1kva 10kva Uninterrupted Power Supply Ups

Basic Information
Place of Origin: China
Brand Name: LE or OEM
Certification: CE/UL/ROHS
Model Number: LE-HR11
Minimum Order Quantity: 6
Price: 198.67-1150 dollar
Packaging Details: disassembled packing
Delivery Time: within 4 weeks
Payment Terms: L/C, D/A, Western Union,paypal
Supply Ability: 10000 piece / pieces per week
Product Name: UPS Battery 110~288VAC 1kVA 10kVA Uninterrupted Power Supply (UPS) Capacity: 1-10kVA
Battery Type: Lead Acid Battery Wave Form: Pure Sine Wave Online UPS
Certification: ISO9001/ISO14001/CE Warranty: 1 Year
Display: LCD+LED Color: Black
Transfer Time: 0ms Gross Weight: 5kg
High Light:

110v uninterrupted power supply ups


1kva uninterrupted power supply ups


10kva uninterrupted power supply ups

UPS Battery 110~288VAC 1kVA 10kVA Uninterrupted Power Supply (UPS)

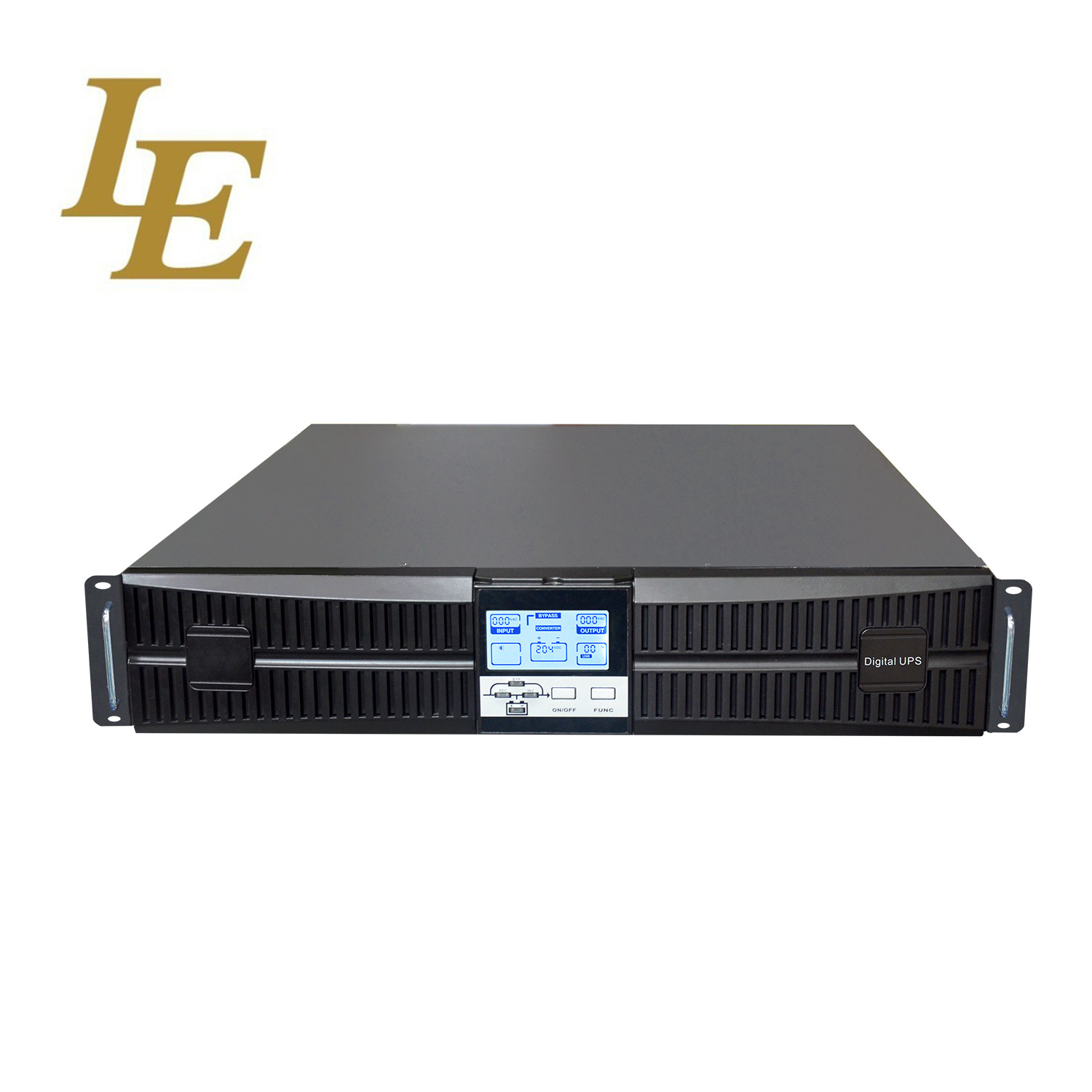

LE-HR11 Series Rack Online UPS 1-10kVA (220V/230V/240V)
LE-HR11 series, ranging from 1kVA to 10kVA, is double conversion online rack UPS with fully DSP controlled technology. The single
phase of 6-10kVA UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high
power density (kW=kVA) in 2U height, HR11 series make it ideal choice for computers, telecommunication equipment and other
sensitive devices.


Input voltage range 110Vac-288Vac
Input frequency 40-70Hz
Voltage regulation ±1 %
Output frequency 50/60Hz
Output PF 0.9/ 1.0
Overload capability
(Inverter mode)
105%-130%: to bypass 1 min; 150%: to bypass after 30 sec;
110%:for 10 min ;125%:for 1min ; 150%:for 30 sec
Overload capability
(Battery mode)
105%-130%: shutdown after 10 sec; 150%: shutdown after 5 sec;
110%: shut down after 1 min; 130%:shut down after 10 sec; >130%: shut down after 200 ms
Crest factor 3:1
Display LED+LCD
Interface RS232,EPO
Optional USB, SNMP, ECO kit, Dry contacts,
Battery cabinet
Operation temperature 0-40ºC

IDC(Internet Data Center),network,servers and workstations, control system, communication system, office.


110 288vac 1kva 10kva Uninterrupted Power Supply Ups 0
Common features for 1-10kVA
Wide range of input voltage while input PF>99%
19" standard cabinet and battery cabinet
Full protection of overvoltage, circuit short and
over temperature
LCD/LED display, monitoring all the operation status
Automatic fan speed adjustment
Abundant interface: RS232,USB, SNMP, Intelligent Card

Unique features for 6-10kVA
High efficiency, up to 95%
kVA=kW, output PF=1
Intelligent charging management, effectively improving
the life time of battery
3 level of technology, compatible with complicated load
