19 42u Server Cabinet Data Center Floor Standing Network Rack

Basic Information
Place of Origin: China
Brand Name: LE
Certification: CE RoHS
Model Number: NA
Minimum Order Quantity: 15pcs
Price: 150USD+
Packaging Details: Carton
Delivery Time: 25-30 workdays
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 6000pcs-8000pcs
Material: SPCC Color: RAL7035 Grey
Thickness: Moutning Rail 2.0mm Others 1.2mm Loading: 800KGS
Nuts And Screws: 25 Sets Mounting Rail: S Shaped
Protection: IP20 Package: Carton
High Light:

19 42u server cabinet


data center 42u server cabinet


19 network rack 42u

Product Description


1.Classic model, disassembled structure,can be flat packing and easy to transport;

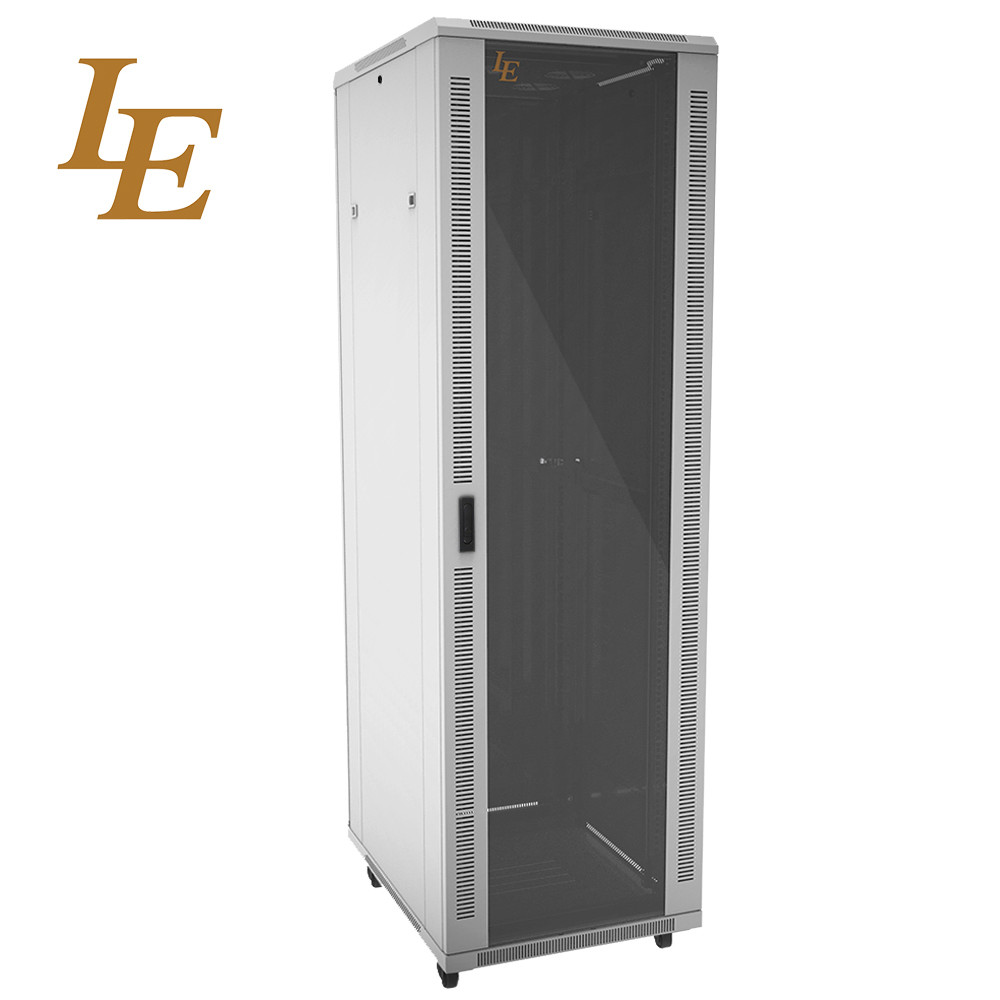

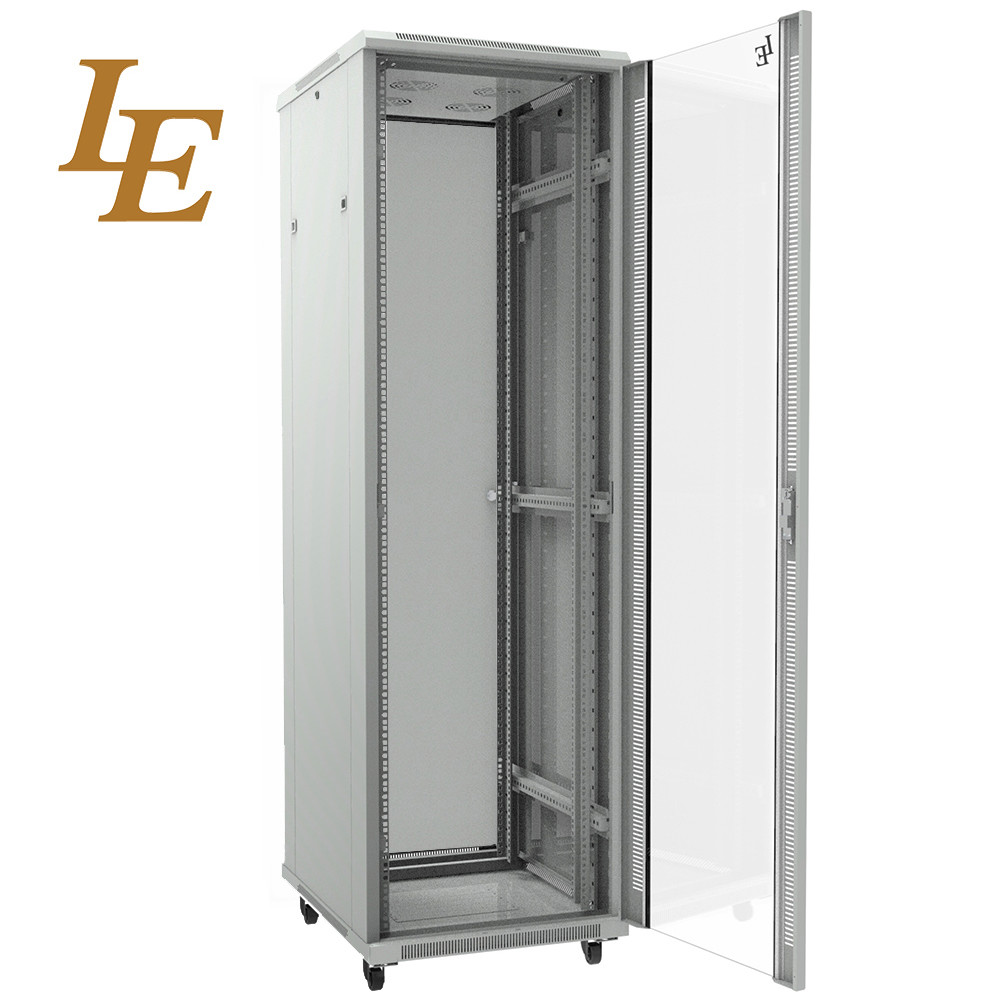

2.Tempered glass front door with advanced spring lock. ,Steel rear door with small round lock;
3.Removable side panel with latches, easy to install, optional lock;
4.Cable entry on the top and bottom;easy to manager cable
5. Adjustable feet and castors are available simultaneously;
6.S-shaped mounting profile, free to move forward and back;
7. Various optional accessories for common using;




Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material SPCC quality cold rolled steel
Thickness:mounting Profile:2.0mm,Others:1.2mm
Tempered glass Thickness:5mm
Loading Capacity Static loading: 800kg(on the adjustable feet)
Degree of protection IP20
Surface finish Degreasing,Pickling,Phosphating,Powder Coated
Product specification 18U-47U
Width 600mm,800mm
Depth 600mm,800mm,900mm,1000mm,1200mm
Color Ral9004; Ral9005; Ral7035




Packaging & Shipping










Company Information



Our Advantages:
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
