32U Industrial Server Rack Network Cabinet Static Loading 19 Inch 1500kg

Basic Information
Place of Origin: China
Brand Name: LE or OEM
Certification: CE/ROHS
Model Number: DA
Minimum Order Quantity: 1pcs
Packaging Details: assembled/disassembled packing
Delivery Time: within 4 weeks
Payment Terms: L/C, D/A, Western Union,paypal
Supply Ability: 1000 piece / pieces per week
Product Name: 19 Inch 32U Industrial Server Rack Network Cabinet 1500kg Static Loading Color: Ral7035SN
Material: SPCC Quality Cold Rolled Steel Product Name: 19 Inch 42U IP65 Floorstanding Server Rack Cabinet
Height: 22 - 42U Loading Capacity: 1500KG
Degree Of Protection: IP65 Width: 600-800mm
Depth: 600-800mm Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated
High Light:

Industrial Server Rack Network Cabinet 32U


Static Loading Network Rack Cabinet


1500kg Server Rack Network Cabinet

19 Inch 32U Industrial Server Rack Network Cabinet 1500kg Static Loading



Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 1500kg
Degree of protection IP65
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification

Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm


The cabinet frame is sturdy and stable with mounting holes.

The side and rear panels are double-panel design, and the panels are secured by internal bolts.

There are gaps between the inner and outer panels to provide ventilation channels, support heat exchange inside the chassis, and also reduce the impact of sunlight exposure.

There are awnings around the roof panel to prevent rain, and there are holes at the bottom of the awning to keep the overall ventilation well and ensure air exchange.

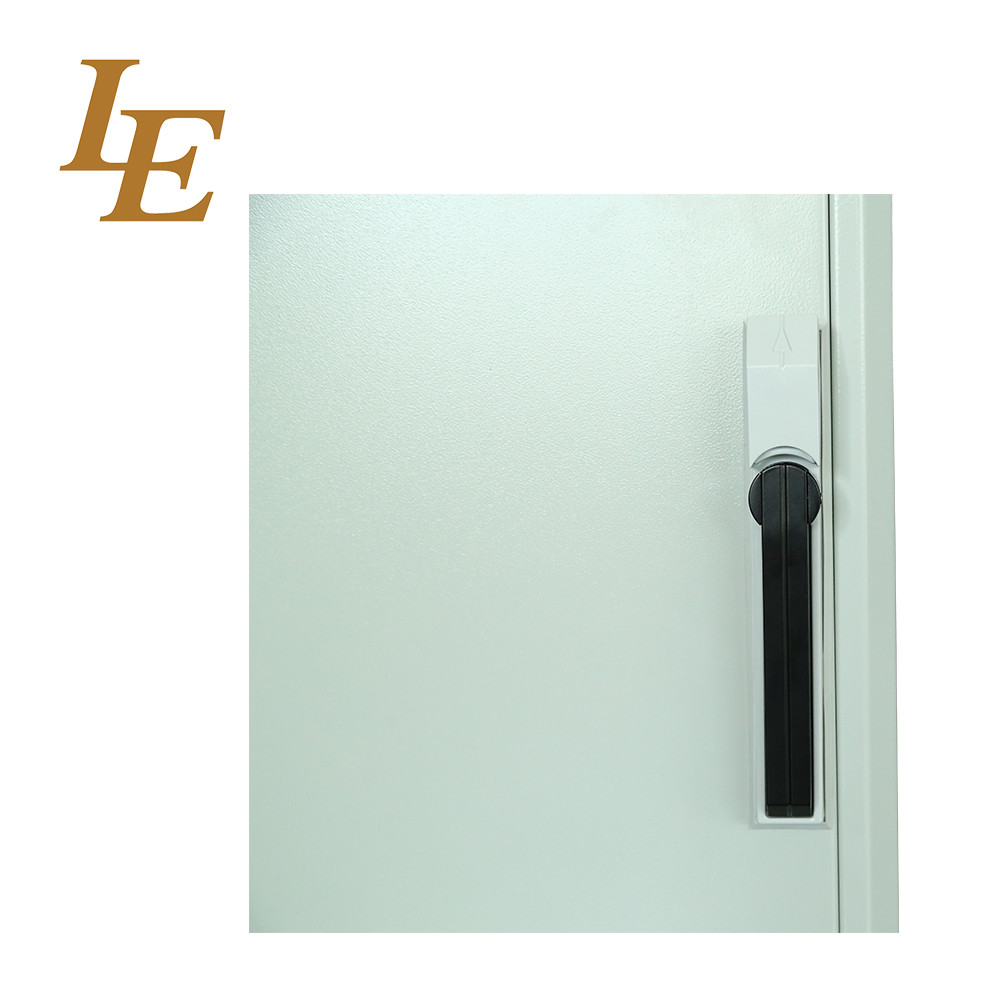

The three-point luxury lock on the front door is more secure, and the side and rear panels are fixed by screws.

Bottom has cable entry with rubber ring.

The housing is of 19" construction and can also be fitted with a mounting plate.

The top is equipped with a fan for ventilation, and the side panels have blind holes for heat output.

Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.



1. Q: Are you a factory or trading company?

A: We are a Factory, Distributor and Trading Company.

2. Q: Where is your factory located? How can I visit there?

A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

Shanghai airport, from home or abroad, are warmly welcome to visit us!

3. Q: Can you do OEM?

A: Yes, we can do OEM products. It's no problem.

4. Q: How can I get some samples?

A: We are honored to offer you samples.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling for to the every

end. Our factory has gained CE,ROHS,SGS authentication.



Main Structure


32U Industrial Server Rack Network Cabinet Static Loading 19 Inch 1500kg 0
32U Industrial Server Rack Network Cabinet Static Loading 19 Inch 1500kg 1
