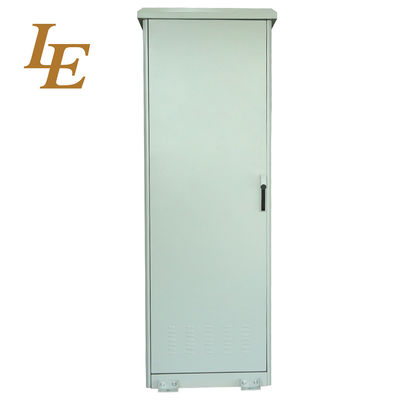

37U Server Rack Network Cabinet Floor Standing 19 Inch

Basic Information
Place of Origin: China
Brand Name: LE or OEM
Certification: CE/ROHS
Model Number: DA
Minimum Order Quantity: 1pcs
Packaging Details: assembled/disassembled packing
Delivery Time: within 4 weeks
Payment Terms: L/C, D/A, Western Union,paypal
Supply Ability: 1000 piece / pieces per week
Product Name: 19 Inch 37U Factory Server Rack Floor Standing Network Cabinet Color: Ral7035SN
Material: SPCC Quality Cold Rolled Steel Product Name: 19 Inch 42U IP65 Floorstanding Server Rack Cabinet
Height: 22 - 42U Loading Capacity: 1500KG
Degree Of Protection: IP65 Width: 600-800mm
Depth: 600-800mm Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated
High Light:

37U Server Rack Network Cabinet

,

Floor Standing Server Rack Network Cabinet

,

19 Inch Network Rack Mount Cabinet

19 Inch 37U Factory Server Rack Floor Standing Network Cabinet



S/N LE-DA
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 1500kg
Degree of protection IP65
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification

22U-42U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm

Style

Strong and stable framework of cabinet, which has the mounting holes.

The side panel and rear panel are the double-panel designed, the panels are fixed by the bolt from the inner.

Between the inside and outside panel has the inter space, which provides the channel to ventilate and support the enclosure internal heat exchange, and also can reduce the influence of the sunlight illumination.

The roof panel has the awning all around stretches out to keep from the rain, the bottom of awning have holes to keep the integrity well ventilated, which guarantees the air exchange.

Luxury lock with three points bolted on the front door more security,side panels and rear panels are fixed by screws.

The bottom have cable entrance with rubber ring.

The enclosure is the 19"structure,also can install the mounting panel.

The top loaded with fans to ventilate, two sides panels have the blind holes to output heat.



Q&A

1. Q: Are you a factory or a trading company?

A: We are factory, distributor and trading company.

2. Q: Where is your factory? How do I get there?

A: Our factory and office are located in Ningbo, China. You can fly to Ningbo Airport or Shanghai Airport. Warmly welcome customers at home and abroad to visit!

3. Q: Can it be OEM?

A: Yes, we can provide OEM products. no problem.



Main Structure



37U Server Rack Network Cabinet Floor Standing 19 Inch 0
37U Server Rack Network Cabinet Floor Standing 19 Inch 1
