| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Latitude(LE) |
| Certification: | CE/ISO/ROHS |
| Model Number: | NA |
| Minimum Order Quantity: | 15pcs |
| Price: | USD91.08-USD268/pcs |
| Packaging Details: | Disassembled packing/Flat packing |
| Delivery Time: | 28 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4000pcs per month |
| Standard: | IEC297-2 | Size: | Customized |
|---|---|---|---|
| Color: | Gray/Black | Height: | 18U-47U |

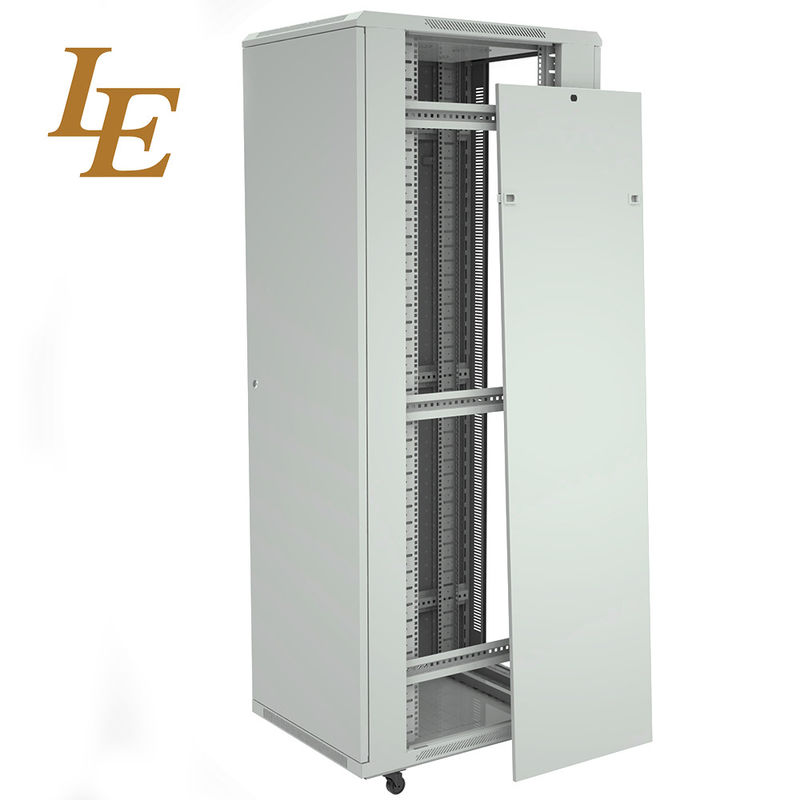

| Type: | 19" Standard Server Cabinet | Surface Finish: | Degreasing, Pickling, Phosphating, Powder Coated |
| Material Thickness: | Mounting Profile: 2.0mm, Glass Door 5.0mm, Others: 1.2mm | ||
| High Light: | 800kg Payload Network Cabinet,Perforated Glass Door Network Cabinet,Data Center Network Server Rack Cabinet |
||
| S/N | LE-NA |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel; Mounting profile: Thickness:2.0mm; Others:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 800kg (on the adjustable feet) |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 18U-47U Width: 600mm, 800mm Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm |
Main Structure
1. Steel rear door
2. specer(for 800mm width)
3. Fan tray
4. Mounting profile
5. Blanking panel
6. Mounting angle
7. Bottom
8. Castor
9. Cable entry plate
10. Top
11. Side panel
12. Frame
13. Vertical Cable management
14. Front door
15. Fixed shelf
16. Feet
FAQ
1. Q: Are you a factory or trading company?
A: Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment.
2. Q: Where is your factory located? How can I visit there?
A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or
Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling for to the every
end. Our factory has gained CE,ROHS,SGS authentication.
