| Place of Origin: | Zhejiang, China (Mainland) |
|---|---|
| Brand Name: | LE or OEM |
| Model Number: | NC |
| Minimum Order Quantity: | 10 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Assembly packing or flat packing. |
| Delivery Time: | 1 month |
| Supply Ability: | 2000 Piece/Pieces per Week Network Cabinet |
| Certification: | CE&RoHs | Product Name: | 19'' Network Cabinet With Tempered Glass Door |
|---|---|---|---|
| Cabinet Standard: | IEC297-2 | Material: | SPCC Cold Rolled Steel |
| Size: | Customized | Color Serial: | Ral9004; Ral9005; Ral7035 |
| Height: | 18U-47U | Degree Of Protection: | IP20 |
| High Light: | Server Cabinet With Vented Door,12U Network Rack Cabinet,Customized Server Rack Network Cabinet |
||

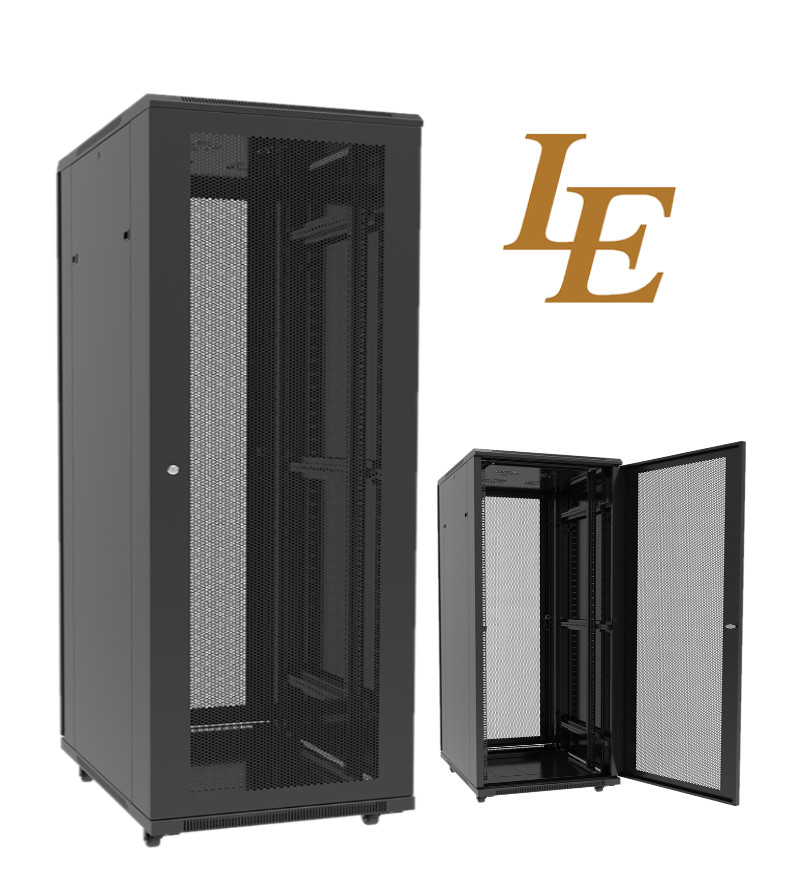

19Inch SPCC Floor Standing Network Cabinet With Vented Door
General Description
| S/N | LE-NC |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel; Mounting profile: Thickness:2.0mm; Others:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 800kg (on the adjustable feet) |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification |
18U-47U |
01: Top Cover
02: Fan Unit
03: Mounting Profile
04: Spacer
05: Mounting Angle
06: Rear Door With Hexagonal Holes
07: High-density Vented Rear Door
08: Steel Rear Door Without Hole
09: Bottom Panel
10: Heavy Duty Castor
11: Frame
12: Side Panel
13: Cable Management Slot
14: Tempered Glass Front Door
15: Arc Vented Front Door
16: 05J Border Glass Front Door
17: Single Vented Front Door
18: Steel Front Door
09: Bottom Panel
10: Heavy Duty Castor
11: Frame
12: Side Panel
13: Cable Management Slot
14: Tempered Glass Front Door
15: Arc Vented Front Door
16: 05J Border Glass Front Door
17: Single Vented Front Door
18: Steel Front Door
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
