| Place of Origin: | Zhejiang,China |
|---|---|
| Brand Name: | LE |
| Certification: | ISO 9001:2008,CE,ROHS,SGS,TUV,BV |
| Model Number: | LE-WS1 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Flat packing:plastic bag+protected corner+carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 5000pcs per day |
| Materila: | SPCC Quality Cold Rolled Steel | Height: | 4-22U |
|---|---|---|---|
| Material Thickness: | 1.2mm;tempered Glass:5.0mm | Loading Capacity: | 100kg |
| Color:: | Ral9004;Ral9005;Ral7035 | Width: | 600mm |
| Depth: | 450mm,600mm | Degree Of Protection: | IP20 |
| High Light: | IP20 Rack Mount Cabinet,black Rack Mount Cabinet,6U Rack Mount Cabinet |
||

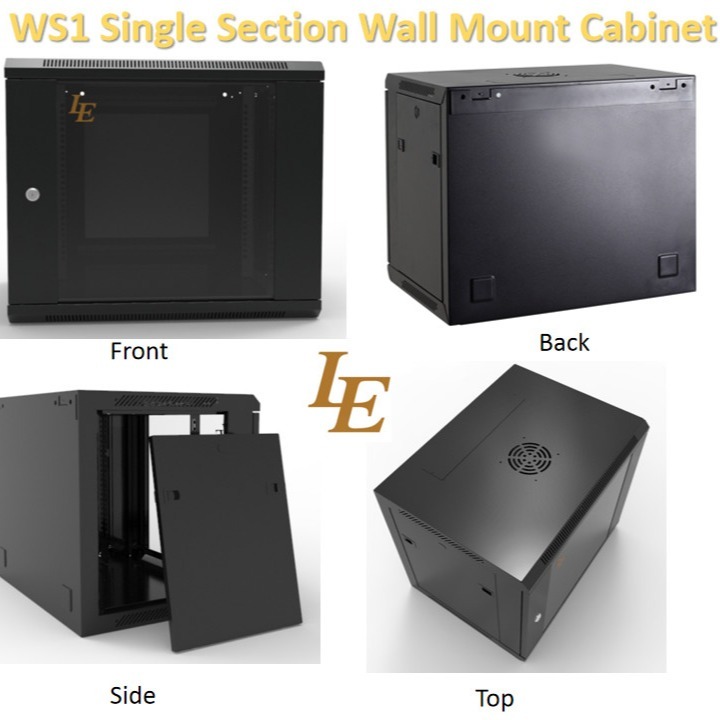

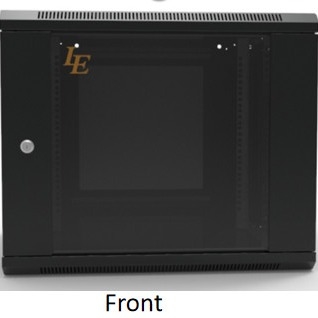

19 Inch 6U 9U Wall Mount Server Rack Wall Mount Cabinet
General Description:
1. Welded frame, single section, compatible with 19" standard equipments;
2. 5mm tempered glass front door with over 180 turning degree;
3. Removable side panel, easy to install and lock optional;
4. Cable entry on the top and bottom;
5. L-shaped mounting profile, easy to adjustable on the mounting rail;
6. Fan cutout on the top, easy to install fan;
7. Installing back panel, easy to fix on the wall;
8. Various accessories for option;
| S/N | LE-WS1 |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | 60kg |
| Degree of Protection | IP20 |
| Surface Finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Production Specification | 4-22U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004;Ral9005;Ral7035 |
| Order Codes | Capacity | W*D*H(mm) |
| LE-WS1-6404 | 4 | 600*450*279 |
| LE-WS1-6604 | 4 | 600*600*279 |
| LE-WS1-6412 | 12 | 600*450*634 |
| LE-WS1-6612 | 12 | 600*600*634 |
| LE-WS1-6422 | 22 | 600*450*1081 |
| LE-WS1-6622 | 22 | 600*600*1081 |
Packing
Plastic bag+protected corner+carton
Our Advantages
1. 100% Manufacturer.
2. On time delivery rate more than 95%.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
7. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
