SPCC 42U Black Server Rack Network Cabinet With Vented Front Door 19

Basic Information
Place of Origin: Zhejiang, China (Mainland)
Brand Name: LE or OEM
Certification: CE,ROHS
Model Number: NC
Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiable
Packaging Details: Assembly packing or flat packing.
Delivery Time: 1 month
Supply Ability: 2000 Piece/Pieces per Week Network Cabinet
Product Name: 19'' Network Cabinet With Tempered Glass Door Certification: CE&RoHs
Degree Of Protection: IP20 Cabinet Standard: IEC297-2
Height: 18U-47U Size: Customized
Color Serial: Ral9004; Ral9005; Ral7035 Material: SPCC Cold Rolled Steel
High Light:

Black Server Rack Network Cabinet

,

Vented Front Door Server Rack

,

SPCC Server Rack

SPCC 42U Black Server Rack Network Cabinet With Vented Front Door 19



General Description

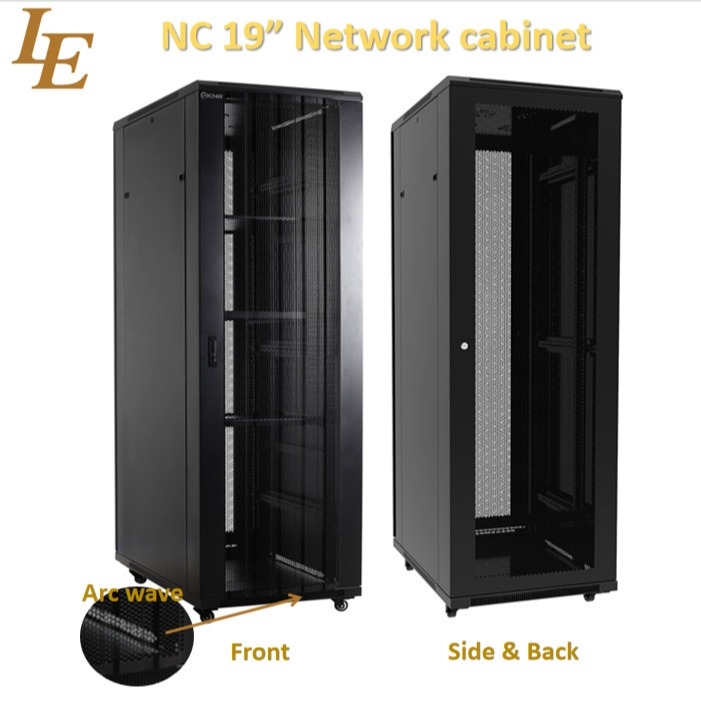

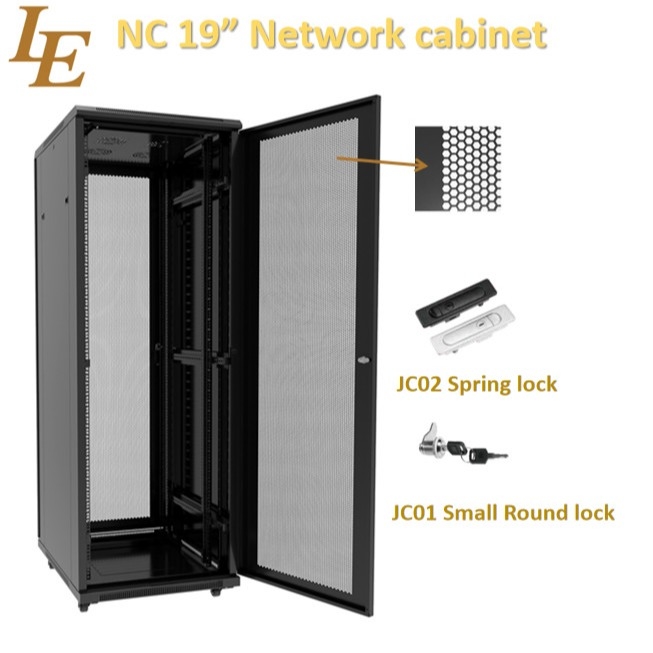

  1. Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree
  2. Vented rear door with hexagonal holes
  3. Removable side panels with latch,easy to install, optional lock
  4. Adjustable cable entry on the top and bottom
  5. Welded steel frame for front and back part, flat packing is available,easy to transfer
  6. Optional plinth to fix cabinet on floor;under base cable entry
  7. Unassembled packing,about 2/5 of original volume,save container space
S/N  LE-NC
Standard

 Comply with ANS/EIA RS-310-D, IEC297-2,

 DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material  SPCC quality cold rolled steel;
 Mounting profile: Thickness:2.0mm; Others:1.2mm;
 Tempered glass: Thickness:5.0mm
Loading Capacity  Static loading: 800kg (on the adjustable feet)
Degree of protection  IP20
Surface Finish  Degreasing; Pickling; Phosphating; Powder Coated
Product Specification

 18U-47U
 Width: 600mm, 800mm
 Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm



SPCC 42U Black Server Rack Network Cabinet With Vented Front Door 19 0

01: Top Cover

02: Fan Unit

03: Mounting Profile

04: Spacer

05: Mounting Angle

06: Rear Door With Hexagonal Holes

07: High-density Vented Rear Door

08: Steel Rear Door Without Hole

09: Bottom Panel

10: Heavy Duty Castor

11: Frame

12: Side Panel

13: Cable Management Slot

14: Tempered Glass Front Door

15: Arc Vented Front Door

16: 05J Border Glass Front Door

17: Single Vented Front Door

18: Steel Front Door

09: Bottom Panel

10: Heavy Duty Castor

11: Frame

12: Side Panel

13: Cable Management Slot

14: Tempered Glass Front Door

15: Arc Vented Front Door

16: 05J Border Glass Front Door

17: Single Vented Front Door

18: Steel Front Door

SPCC 42U Black Server Rack Network Cabinet With Vented Front Door 19 1

Our Advantages

1. 100% Manufacturer.

2. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

3. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. On time delivery rate more than 95%.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
