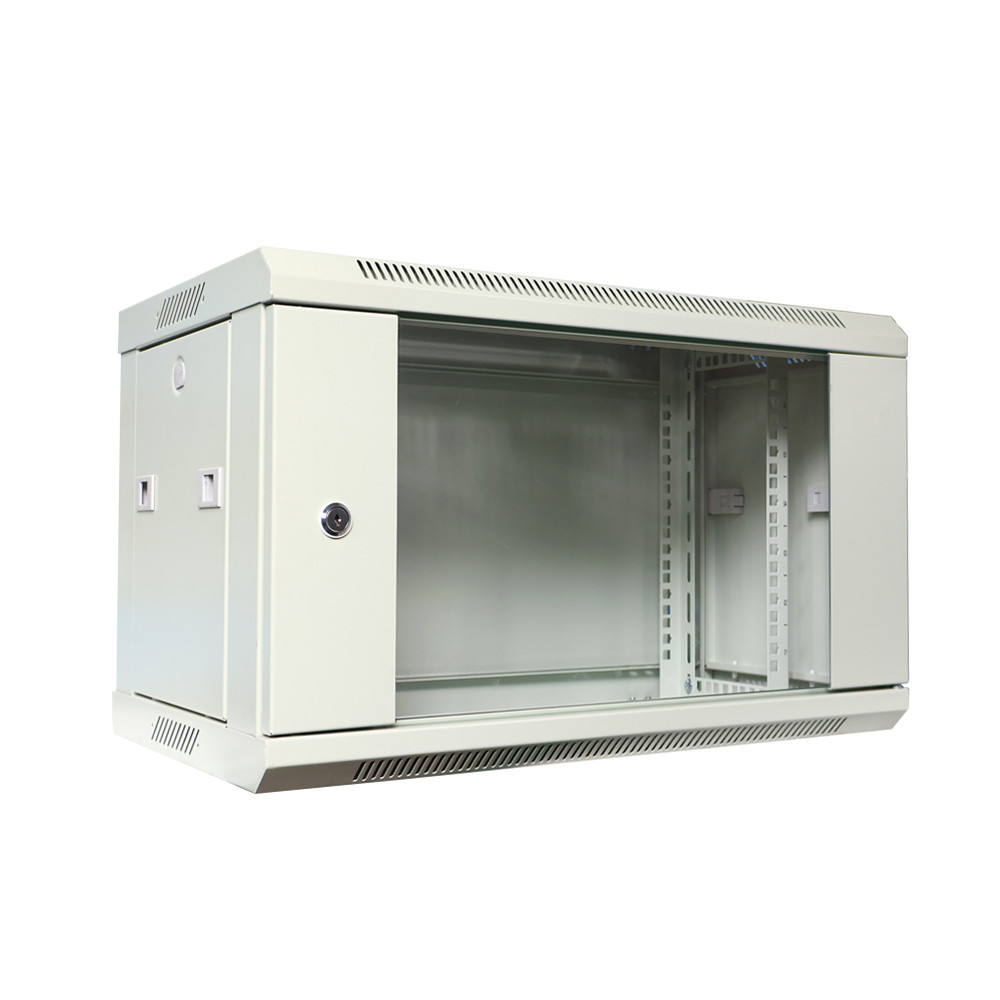

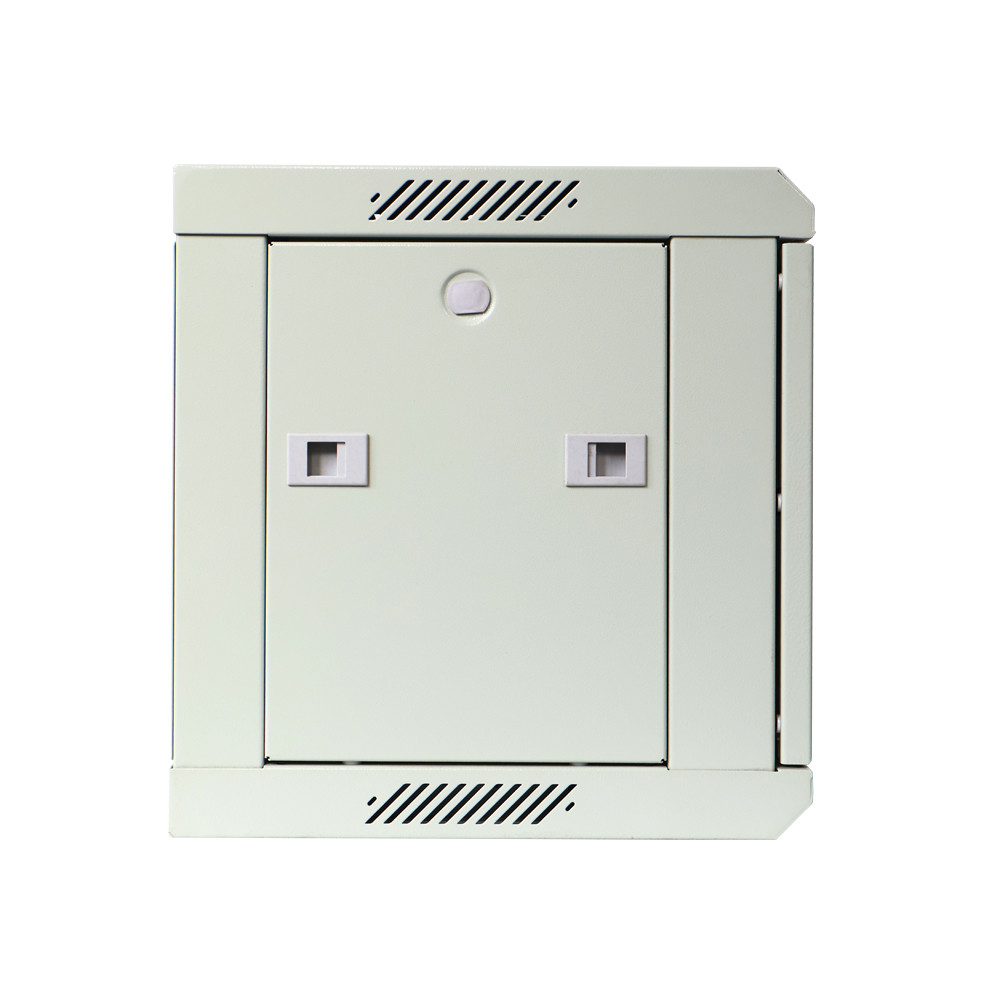

OEM IP20 19 Inch Wall Mounted Server Network Rack
Features:
Steel frame with assistant profile unassembled structure;
Single section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional;
Cable entry on the top and bottom;
L-shaped mounting profile,easy to adjustable on the mounting rail;
Fan cutout on the top,easy to install fan;

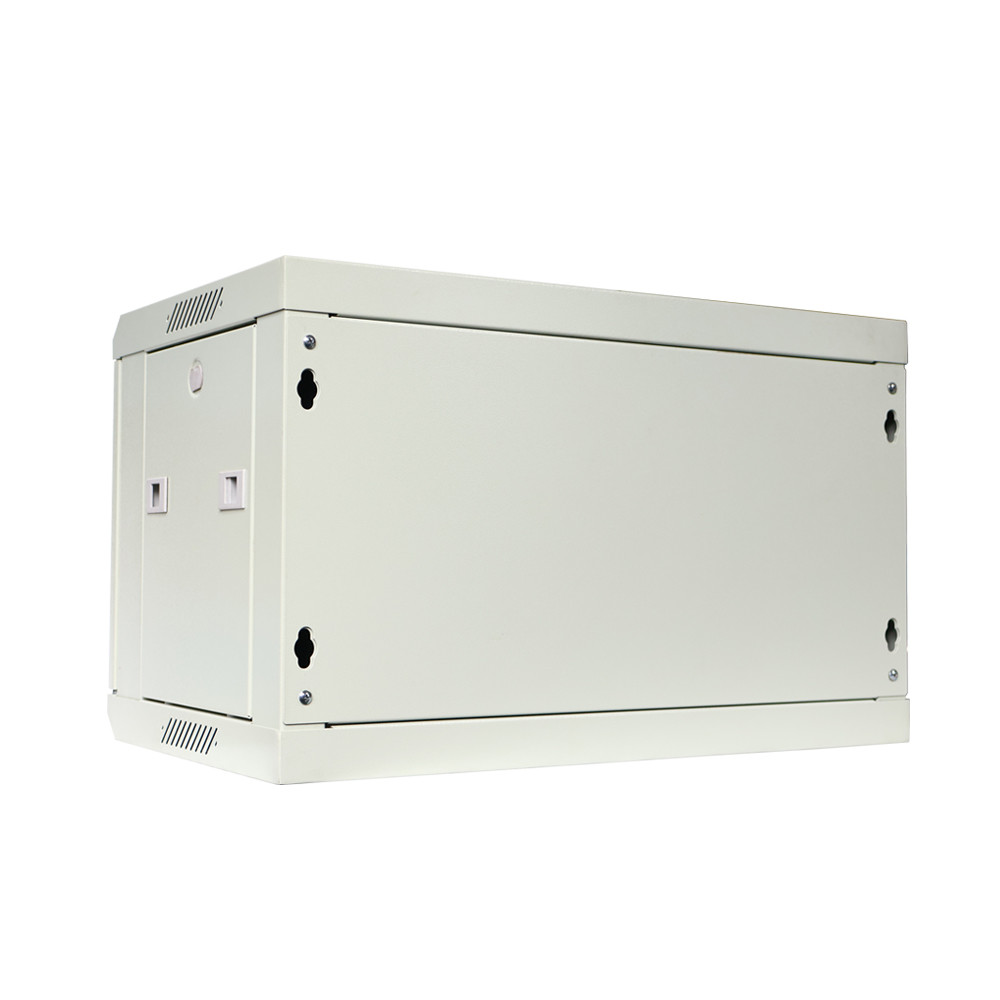

Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option;
Flat packing,save the container space,easy to transport;
| S/N |
LE-WS3
|
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2,
DIN41491, PART1, DIN41491, PART7, ETSI Standard
|
| Material |
SPCC quality cold rolled steel: Thickness:1.2mm;
Tempered glass: Thickness:5.0mm |
| Loading Capacity |
Static loading: 60kg |
| Degree of protection |
IP20 |
| Surface Finish |
Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification |
4U-18U
Width: 600mm
Depth: 450mm, 600mm |
|
Main Structure
1. Installing Backboard
2. Horizontal mounting angle
3. Mounting profile (L-shaped)
4. Front frame
5. Cable entry plate
6. Top
7. Side panel
8. Tempered glass front door
9. Bottom
|
Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.
FAQ
1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the every end. Our factory has gained CE,ROHS,SGS authentication.
